CPQYD
Tavol

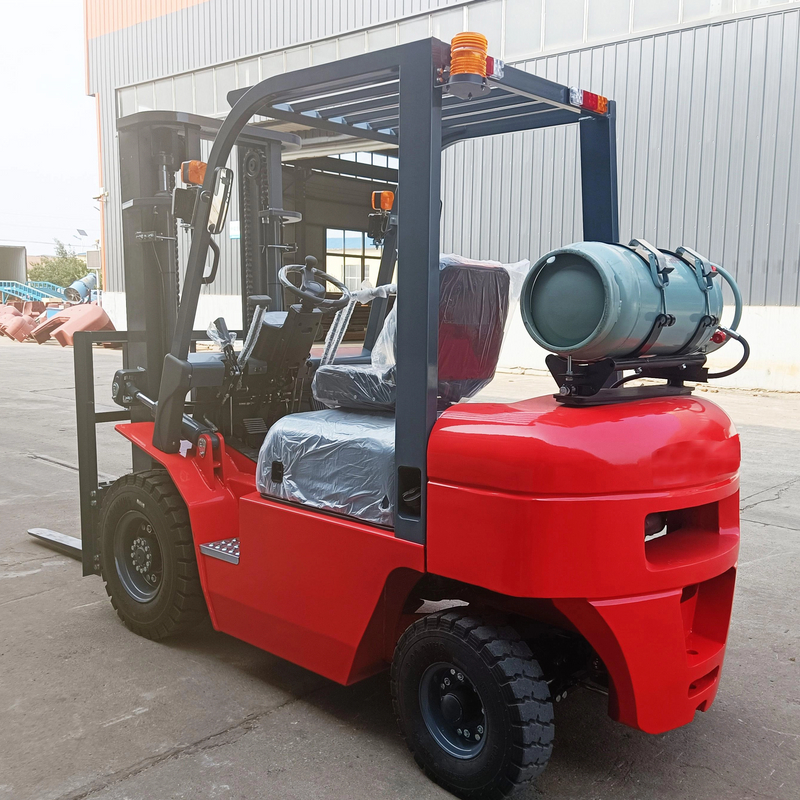

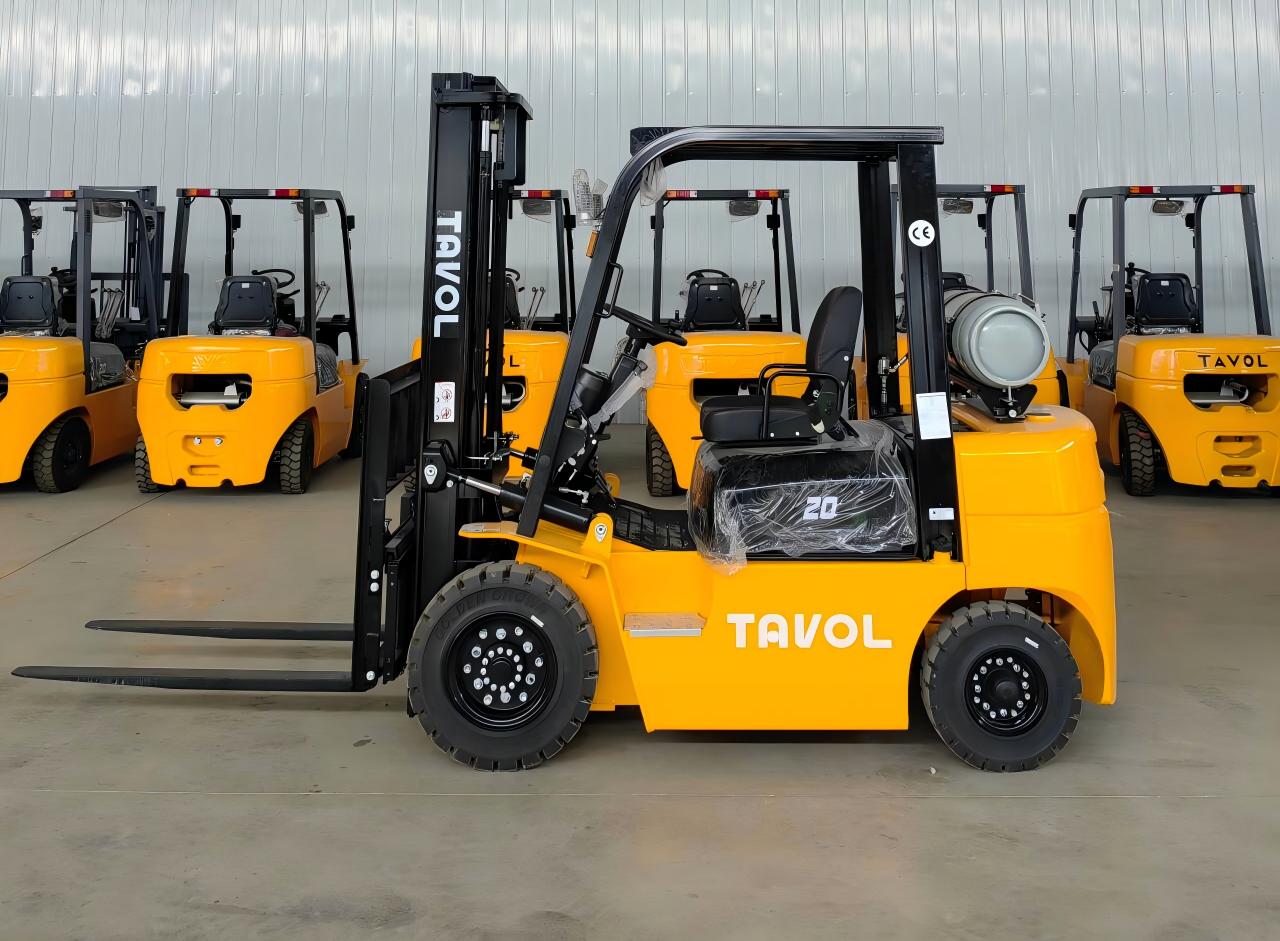

The 2-ton LPG forklift produces almost no harmful emissions during operation, greatly reducing environmental pollution. Its environmentally friendly features not only conform to the global trend of energy conservation and emission reduction, but can also win a good social reputation and brand image for your company.
With a powerful carrying capacity of 2 tons, this forklift can easily handle various heavyweight material handling tasks. Its stable driving performance and high operating efficiency ensure that you can maintain a high-efficiency production rhythm in any working environment.
Environmental protection and energy saving Clean energy: LPG (liquefied petroleum gas) is a clean energy source. Compared with traditional diesel or gasoline forklifts, the exhaust gas produced by its combustion has lower levels of harmful substances, helping to reduce environmental pollution. |
|
 | Low emissions: LPG forklifts perform well in emission control and can significantly reduce emissions of harmful gases such as CO (carbon monoxide), HC (hydrocarbons) and NOx (nitrogen oxides), complying with increasingly stringent environmental regulations. |
Low fuel costs: The price of LPG is generally more stable and relatively lower than diesel and gasoline, so using LPG forklifts can reduce a business's operating costs. |  |
| Low fuel costs: The price of LPG is generally more stable and relatively lower than diesel and gasoline, so using LPG forklifts can reduce a business's operating costs. |
Model | CPQYD20 | |||||
Rated capacity | KG | 2000 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 60 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 400 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 17/19 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2450 | ||||
The minimum clearance from the ground | MM | 110 | ||||
Wheelbase | MM | 1640 | ||||
Wheel tread | F/R | MM | 970/970 | |||
front overhang | MM | 451 | ||||
Dimensions | Length | With fork | MM | 3605 | ||
Width | MM | 1160 | ||||
Closed mast height | MM | 2095 | ||||
Overhead guard height | MM | 2095 | ||||
Max. Height at work | With/without backrest | MM | 4080 | |||
Fork size | LXWXT | MM | 1070x122x40 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 3470 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||
Motor | Brand | Nissan K25 | ||||
Maximum output power(Kw) | 37.4 | |||||
Rated speed(rpm) | 2300 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600 | |||||
The engine form | Hydraulic | |||||

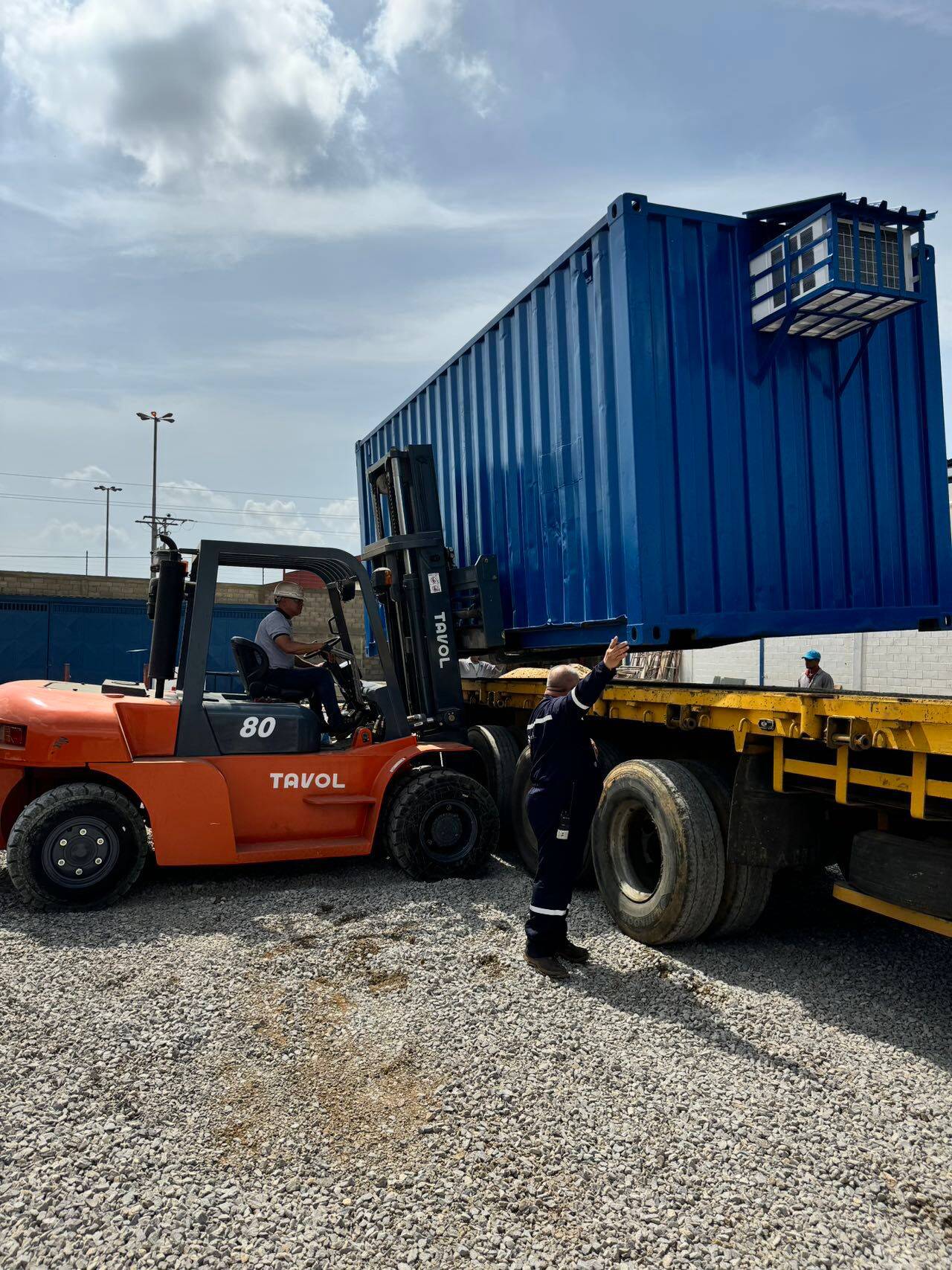

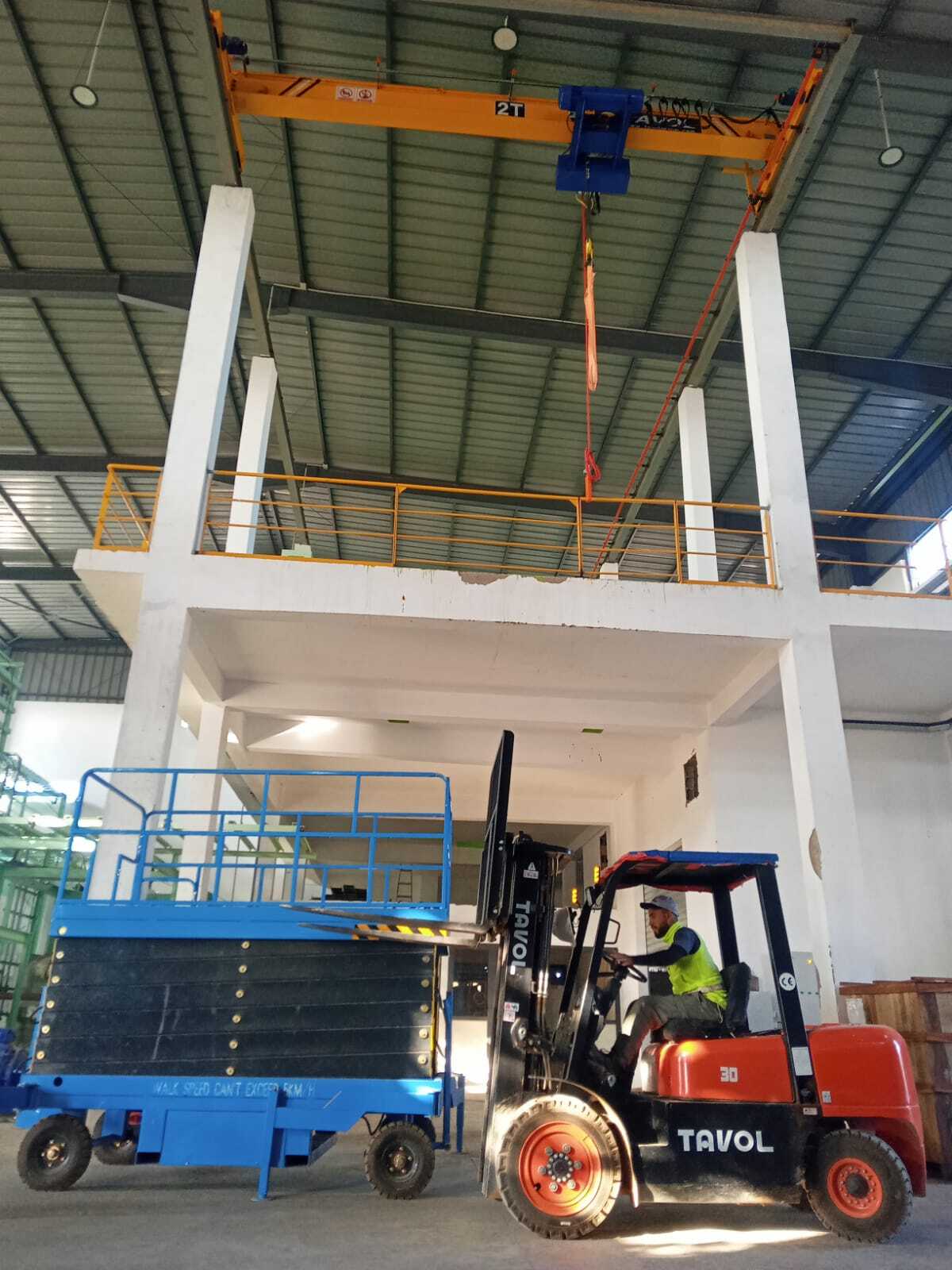

Success Case
With global sales surpassing 10,000+ units, our forklifts have become the backbone of warehousing and logistics operations across five continents—empowering businesses to move faster, smarter, and more efficiently. Our quality footprint spans 60+ countries, from the industrial hubs of the United Kingdom, France, and Italy, to the dynamic markets of Poland, the Czech Republic, and Bulgaria; from the growing economies of Romania, Georgia, and Turkey to the resource-rich landscapes of Brazil, Chile, and Argentina. Whether navigating the bustling ports of Peru and Mexico, supporting agriculture in Colombia and Australia, or driving infrastructure projects in the UAE, Saudi Arabia, and South Africa, our machines are trusted partners in progress.
 |  |  |
 |  |  |
For More Information ,please feel free to contact us :
The 2-ton LPG forklift produces almost no harmful emissions during operation, greatly reducing environmental pollution. Its environmentally friendly features not only conform to the global trend of energy conservation and emission reduction, but can also win a good social reputation and brand image for your company.
With a powerful carrying capacity of 2 tons, this forklift can easily handle various heavyweight material handling tasks. Its stable driving performance and high operating efficiency ensure that you can maintain a high-efficiency production rhythm in any working environment.
Environmental protection and energy saving Clean energy: LPG (liquefied petroleum gas) is a clean energy source. Compared with traditional diesel or gasoline forklifts, the exhaust gas produced by its combustion has lower levels of harmful substances, helping to reduce environmental pollution. |
|
| Low emissions: LPG forklifts perform well in emission control and can significantly reduce emissions of harmful gases such as CO (carbon monoxide), HC (hydrocarbons) and NOx (nitrogen oxides), complying with increasingly stringent environmental regulations. |
Low fuel costs: The price of LPG is generally more stable and relatively lower than diesel and gasoline, so using LPG forklifts can reduce a business's operating costs. | |
| Low fuel costs: The price of LPG is generally more stable and relatively lower than diesel and gasoline, so using LPG forklifts can reduce a business's operating costs. |
Model | CPQYD20 | |||||
Rated capacity | KG | 2000 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 60 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 400 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 17/19 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2450 | ||||
The minimum clearance from the ground | MM | 110 | ||||
Wheelbase | MM | 1640 | ||||
Wheel tread | F/R | MM | 970/970 | |||
front overhang | MM | 451 | ||||
Dimensions | Length | With fork | MM | 3605 | ||
Width | MM | 1160 | ||||
Closed mast height | MM | 2095 | ||||
Overhead guard height | MM | 2095 | ||||
Max. Height at work | With/without backrest | MM | 4080 | |||
Fork size | LXWXT | MM | 1070x122x40 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 3470 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||
Motor | Brand | Nissan K25 | ||||
Maximum output power(Kw) | 37.4 | |||||
Rated speed(rpm) | 2300 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600 | |||||
The engine form | Hydraulic | |||||
Success Case
With global sales surpassing 10,000+ units, our forklifts have become the backbone of warehousing and logistics operations across five continents—empowering businesses to move faster, smarter, and more efficiently. Our quality footprint spans 60+ countries, from the industrial hubs of the United Kingdom, France, and Italy, to the dynamic markets of Poland, the Czech Republic, and Bulgaria; from the growing economies of Romania, Georgia, and Turkey to the resource-rich landscapes of Brazil, Chile, and Argentina. Whether navigating the bustling ports of Peru and Mexico, supporting agriculture in Colombia and Australia, or driving infrastructure projects in the UAE, Saudi Arabia, and South Africa, our machines are trusted partners in progress.
| | |
| | |
For More Information ,please feel free to contact us :
