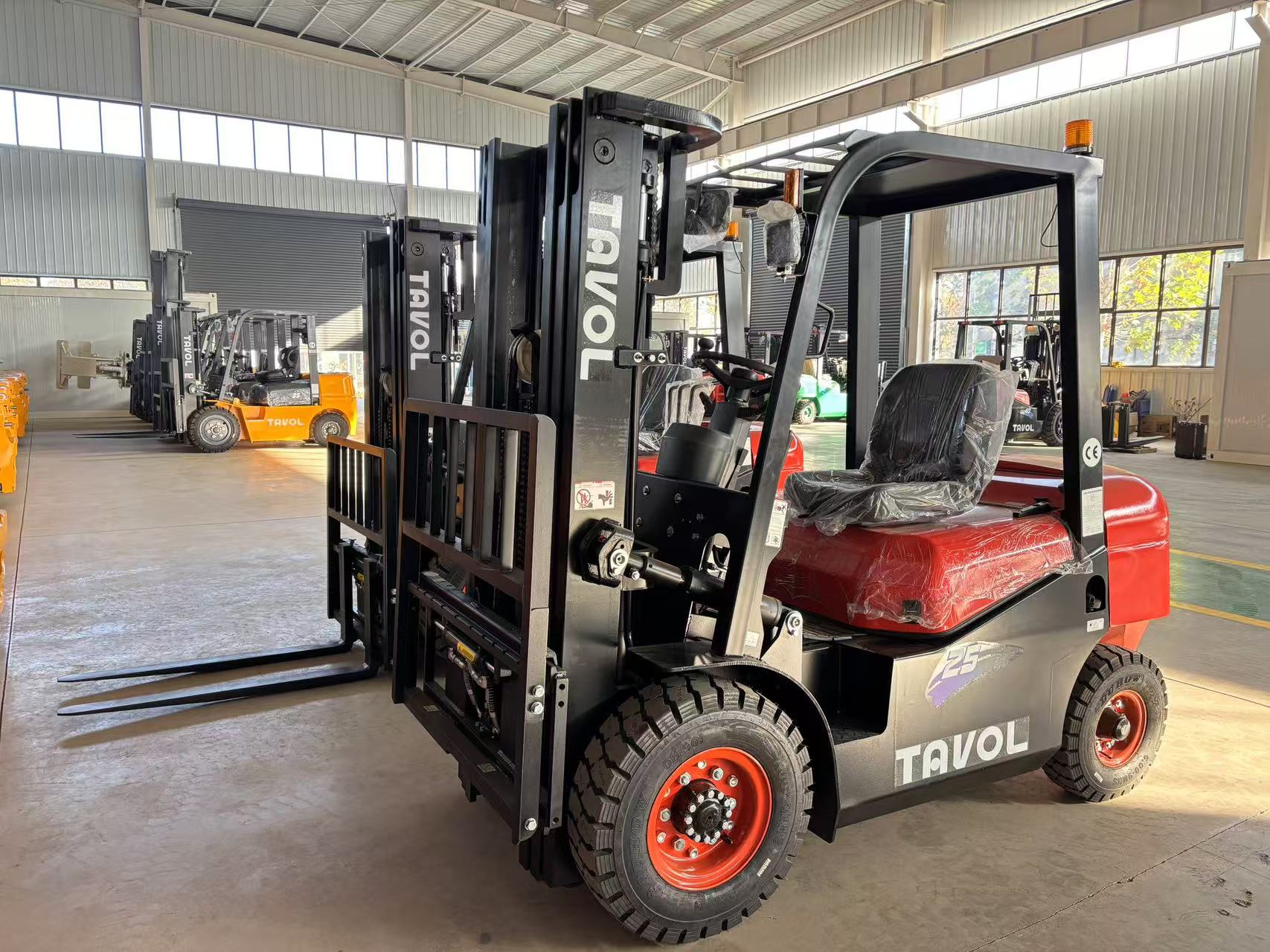

CPCD25
Tavol
The 2.5-ton diesel forklift is a heavy-duty handling equipment specially designed for logistics, warehousing, manufacturing and other industries. It uses diesel as its power source and has the characteristics of strong carrying capacity, high operating efficiency and strong adaptability, and can meet the material handling needs under various complex working conditions.
Technical Parameters
Model | CPCD25 | |||||
Rated capacity | KG | 2500 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 60 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 400 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 17/19 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2450 | ||||
The minimum clearance from the ground | MM | 110 | ||||
Wheelbase | MM | 1640 | ||||
Wheel tread | F/R | MM | 970/970 | |||
front overhang | MM | 451 | ||||
Dimensions | Length | With fork | MM | 3605 | ||
Width | MM | 1160 | ||||
Closed mast height | MM | 2095 | ||||
Overhead guard height | MM | 2095 | ||||
Max. Height at work | With/without backrest | MM | 4080 | |||
Fork size | LXWXT | MM | 1220x122x40 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 3600 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||
Motor | Brand | Xinchai 4D29V41 | ||||
Maximum output power(Kw) | 36.8 | |||||
Rated speed(rpm) | 2400 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600-1800 | |||||
The engine form | Hydraulic | |||||
Product details:
Forklift Attachment
Customer feedback
Project in Armenia
Project in Azerbaijan
Project in Mexico
