CPCD25
Tavol

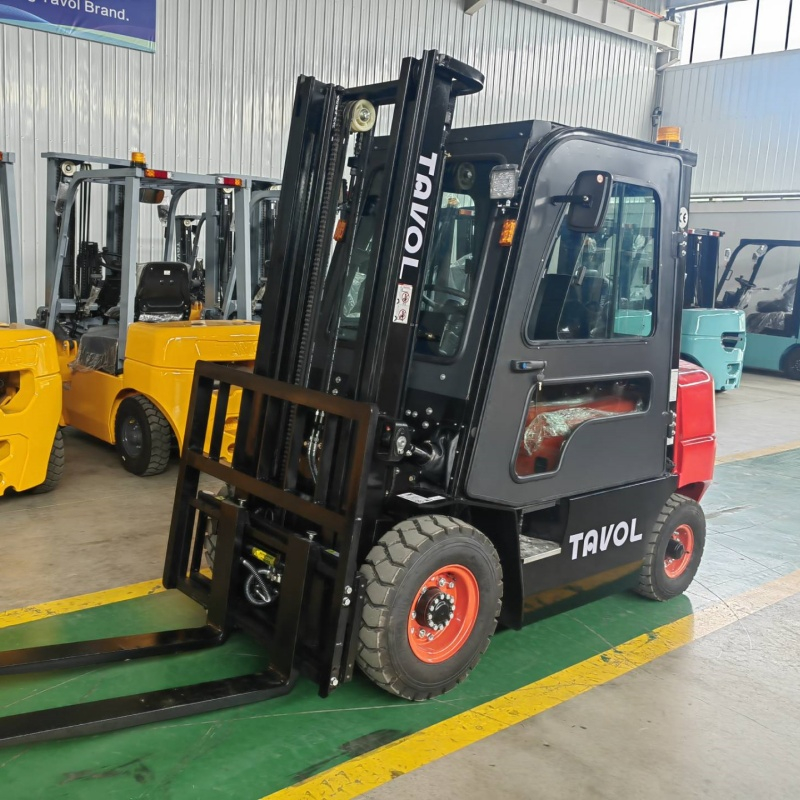

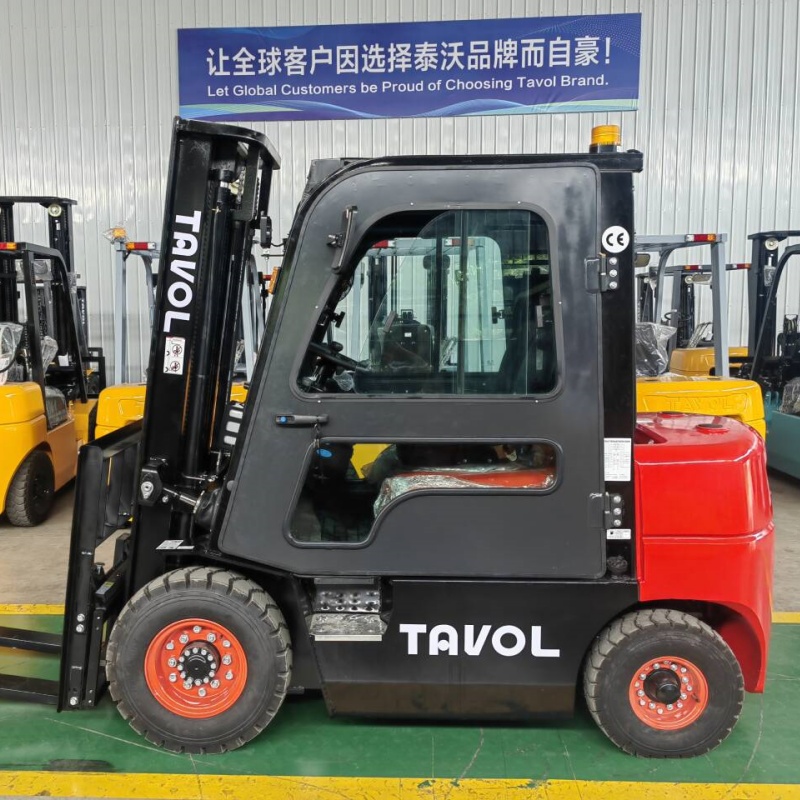

This 2.5-ton diesel forklift with a cab is an excellent choice for customers who need to perform high-intensity, long-duration handling operations in complex outdoor environments. It ensures maximum uptime with the lowest operating costs, providing a reliable foundation for improving your site's operational efficiency and competitiveness.
Model | CPCD25 | |||||
Rated capacity | KG | 2500 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 60 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 400 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 17/19 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2450 | ||||
The minimum clearance from the ground | MM | 110 | ||||
Wheelbase | MM | 1640 | ||||
Wheel tread | F/R | MM | 970/970 | |||
front overhang | MM | 451 | ||||
Dimensions | Length | With fork | MM | 3605 | ||
Width | MM | 1160 | ||||
Closed mast height | MM | 2095 | ||||
Overhead guard height | MM | 2095 | ||||
Max. Height at work | With/without backrest | MM | 4080 | |||
Fork size | LXWXT | MM | 1220x122x40 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 3600 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||
Motor | Brand | Xinchai 4D29V41 | ||||
Maximum output power(Kw) | 36.8 | |||||
Rated speed(rpm) | 2400 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600-1800 | |||||
The engine form | Hydraulic | |||||
Powerful and Efficient Power Core
1. High-Performance Diesel Engine: Equipped with a powerful and fuel-efficient diesel engine (either Quanchai or Xinchai), providing ample torque for easy heavy-load starting and climbing, significantly increasing work efficiency.
2. Advanced Hydraulic System: The optimized hydraulic system ensures smooth and powerful lifting and lowering, with precise and responsive operation, effectively reducing energy consumption.
Safe and Comfortable Driving Environment

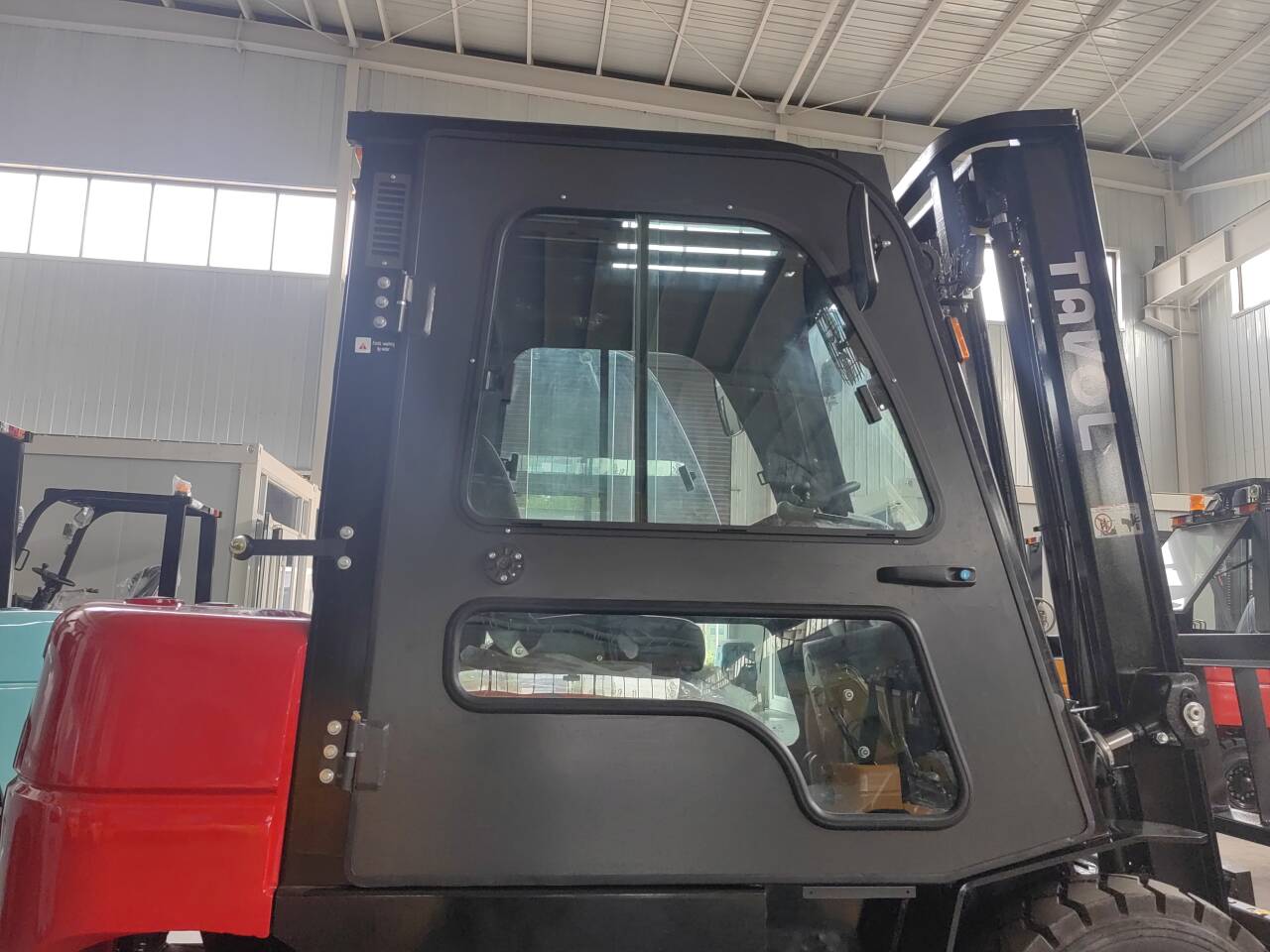

1. Fully Enclosed Cab: Features a well-sealed steel cab, standard with wipers and defroster, effectively isolating wind, rain, dust, and noise, providing all-weather operation protection.
2. Ergonomic Operation Design: Ergonomically designed suspension seat, adjustable steering wheel, and clearly laid-out instrument panel and control levers greatly reduce driver fatigue.
3. Comprehensive Safety Visibility: Large glass doors and windows and optimized column design provide a wide field of vision to the front, sides, and rear, with standard rearview mirrors for safe operation without blind spots.
Robust and reliable vehicle design
1. Large Capacity Fuel Tank: Meets the needs of long-term continuous operation, reducing refueling frequency and improving equipment utilization.
2. Convenient Maintenance Design: The engine hood opens at a wide angle, and oil level check points and daily maintenance points are easily accessible, significantly shortening maintenance time and reducing maintenance costs.
Operating Environment
1. Outdoor and semi-outdoor conditions: Particularly suitable for open or semi-open environments such as construction sites, logistics yards, ports and docks, stone and building materials yards, and waste recycling facilities, unaffected by wind, rain, or strong sunlight.
2. Complex and demanding road surfaces: Excellent performance on uneven surfaces such as concrete, gravel, and slightly muddy ground, with strong off-road capability.
3. Medium-to-long-term continuous operation: Suitable for working conditions with long operating cycles and heavy loads; the diesel engine provides long-lasting power and meets the demands of high-intensity work.
It can be used with different attachments. Such as side shifter, hinged fork, side shifter fork positioner, block clamp, paper roll clamp, rotator, fork clamp, bale clamp etc.
Project in Armenia
Project in Azerbaijan
Project in Mexico
Q1: Are you the factory or the trading company ?
A1: We are the factory, we located in Taian City, Shandong Province, China.
Q2: How long is the warranty period? Can you provide spare parts for free ?
A2: 1 Years warranty period, of course. We can provide spare parts for free.
Q3: How about the delivery time?
A3: 5-15 days around.
Q4: What your term of payment?
A4: TT and L/C.
Q5. Can you customize and design as the clients' requirement?
A5: TAVOL will try its best to meet all kinds of clients' special requirements.
Welcome to contact
