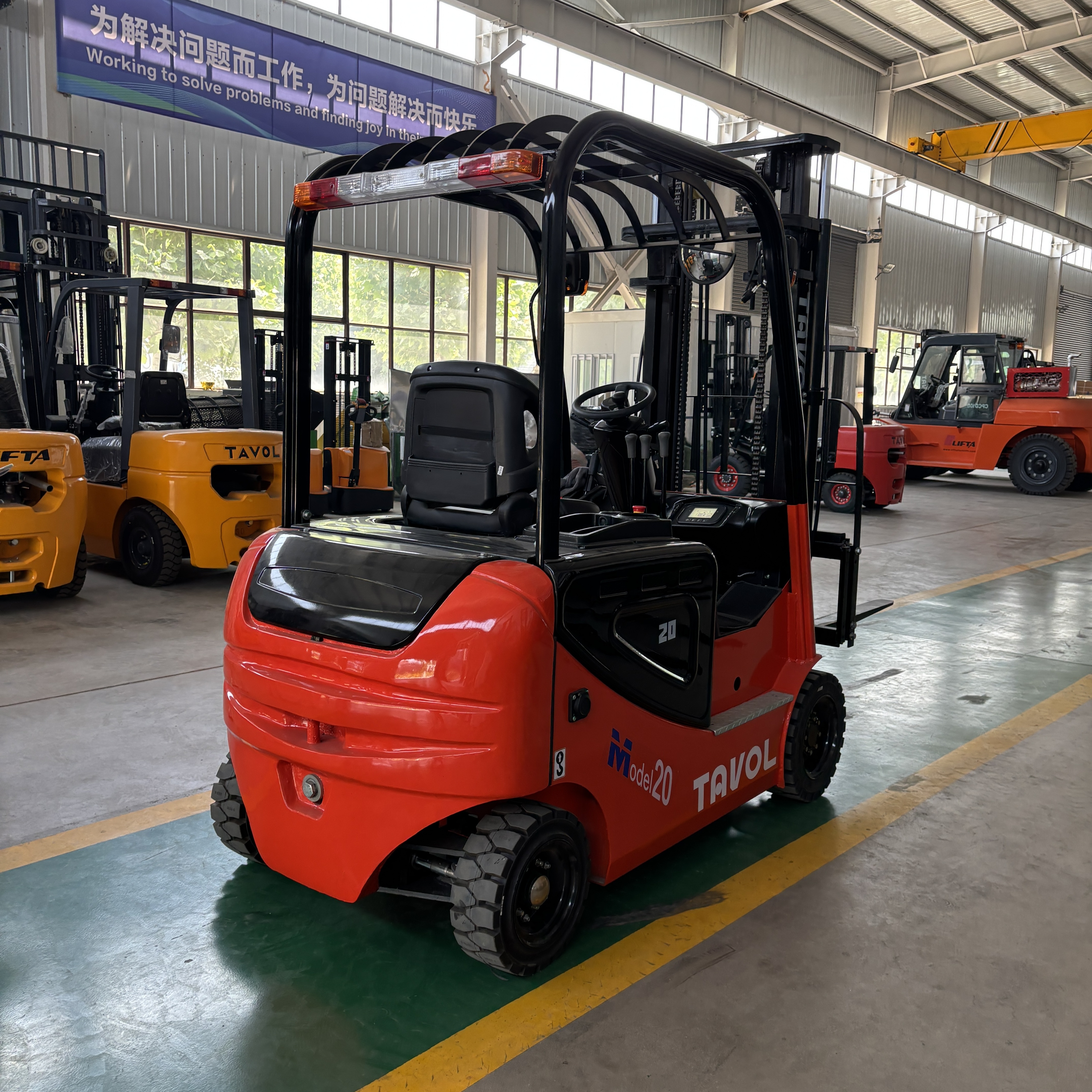

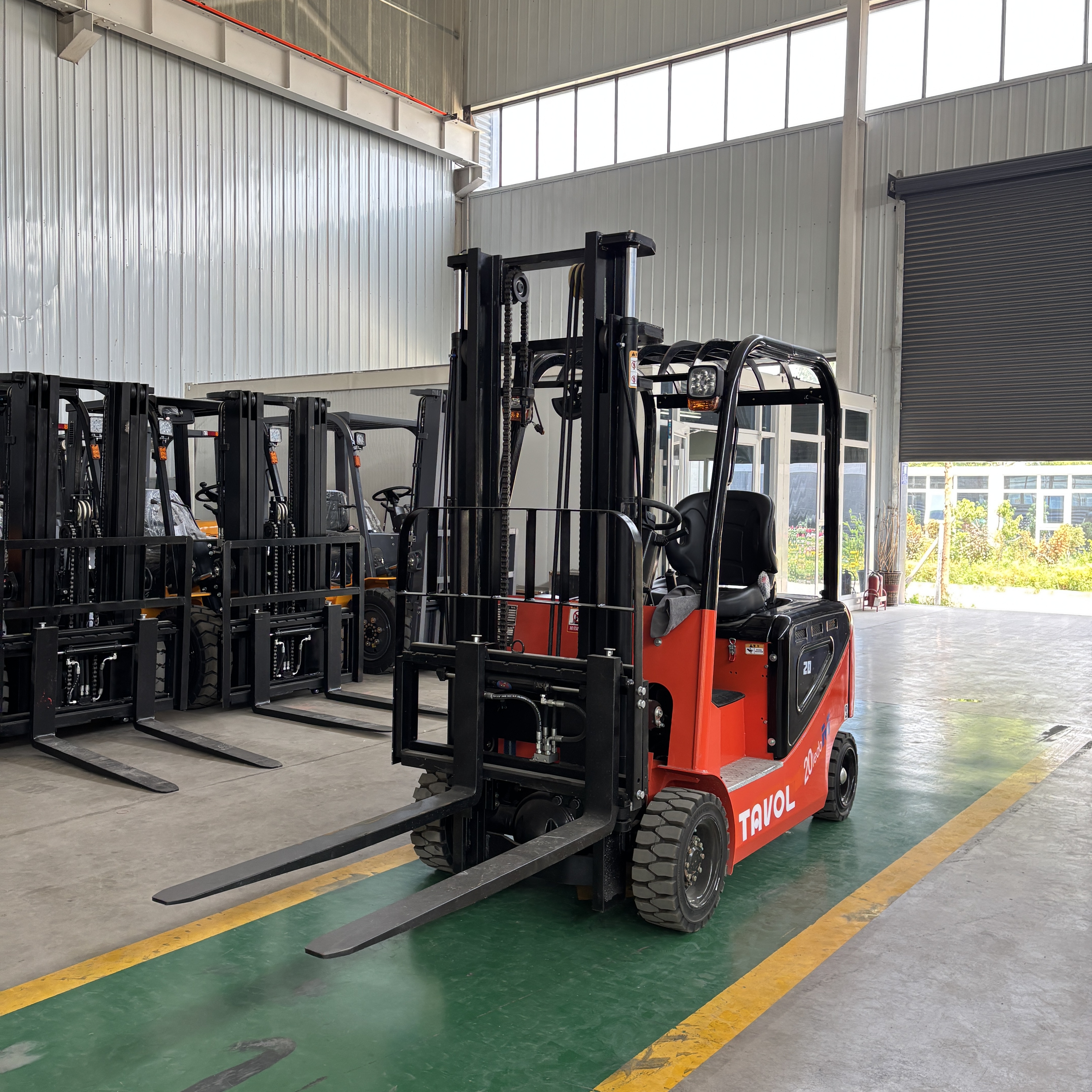

Tavol 2Ton Electric Forklift Truck

Name: Tavol 2Ton Electric Forklift Truck
Brand: Tavol
SKU: 564727217
Rating: 5.0 (56 reviews)

The 2-ton electric forklift is an energy-efficient storage and handling equipment. It is powered by lithium batteries or lead-acid batteries, has zero emissions and low noise, and is suitable for indoor and outdoor logistics, manufacturing and other scenarios. Equipped with an efficient AC motor, it is powerful.

Capacity(kg):	2000kg
Fork size(mm）:	1070mm
Lifting height:	3m
Availability:

Quantity:



Inquire Add to Basket

Model:
FB20
Brand:
Tavol
Code:
8427109000

Product Description

Product specifications

Model	FB10	FB15	FB20	FB25	FB30
Rated Loading Capacity(kg)	1000	1500	2000	2500	3000
Load Center Distance(mm)	500	500	500	500	500
Fork Lifting Height(mm)	3000	3000	3000	3000	3000
Mast Tilt Angle (Forward and Backward)	5/10	5/10	5/10	5/10	6/12
Length (Including Fork)(mm)	3050	3150	3300	3400	4120
Width(mm)	1020	1096	1096	1096	1230
Wheel Base(mm)	1330	1550	1550	1550	1550
Front Wheel Track(mm)	910	954	945	945	1000
Rear Wheel Track(mm)	865	880	880	880	970
Tires（front/rear）	15*4 1/2-8	18&7-10 15*4 2/1-8	18&7-10 15*4 2/1-8	18&7-10 15*4 2/1-8	28*9-15-14/6.50-10-10
Self Weight(kg)	1800	2650	2850	3200	4400
Min. Ground Clearance(mm)	77	88	88	88	135
Min. Turning Radius(mm)	2050	2280	2280	2280	2530
Standard Fork Length(mm)	1070	1070	1070	1070	1220
Drive motor power(kw)	4	4	5	6	15
Lifting motor power(kw)	4.5	5	5	7.5	16
