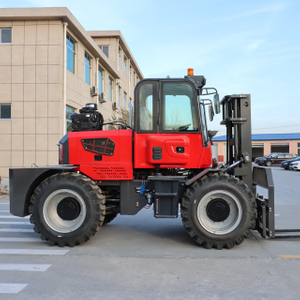

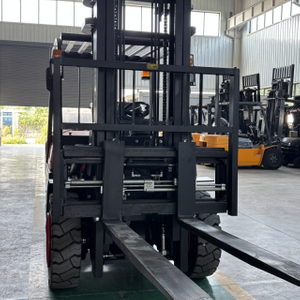

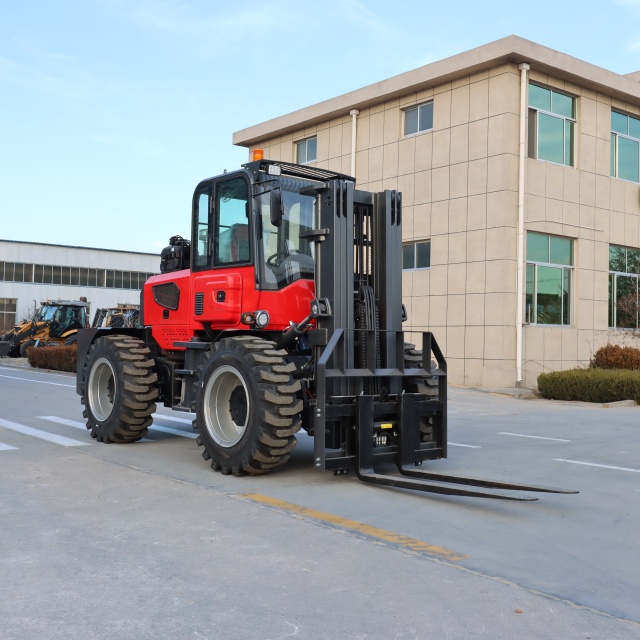

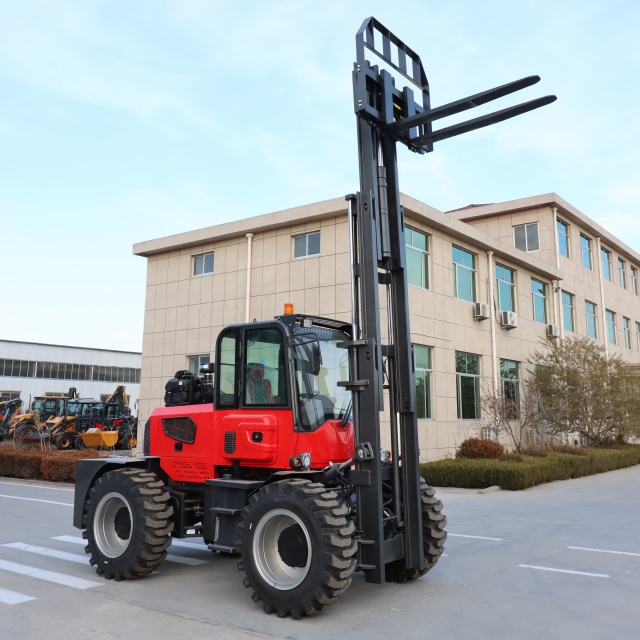

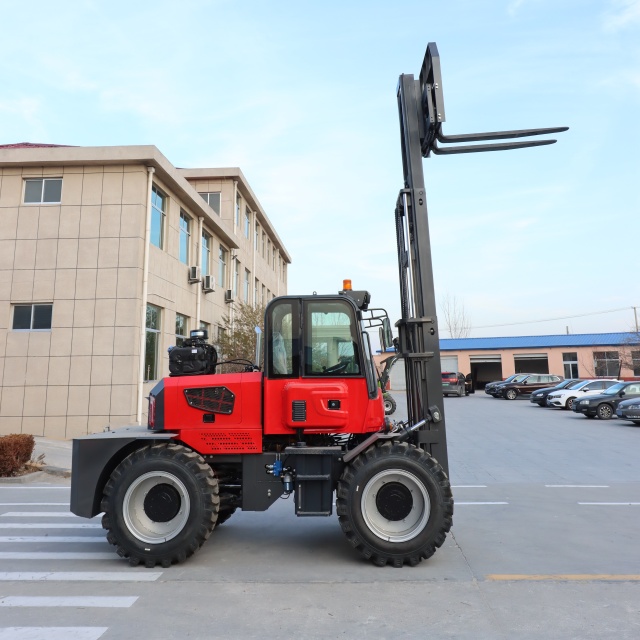

CPCD50
Tavol

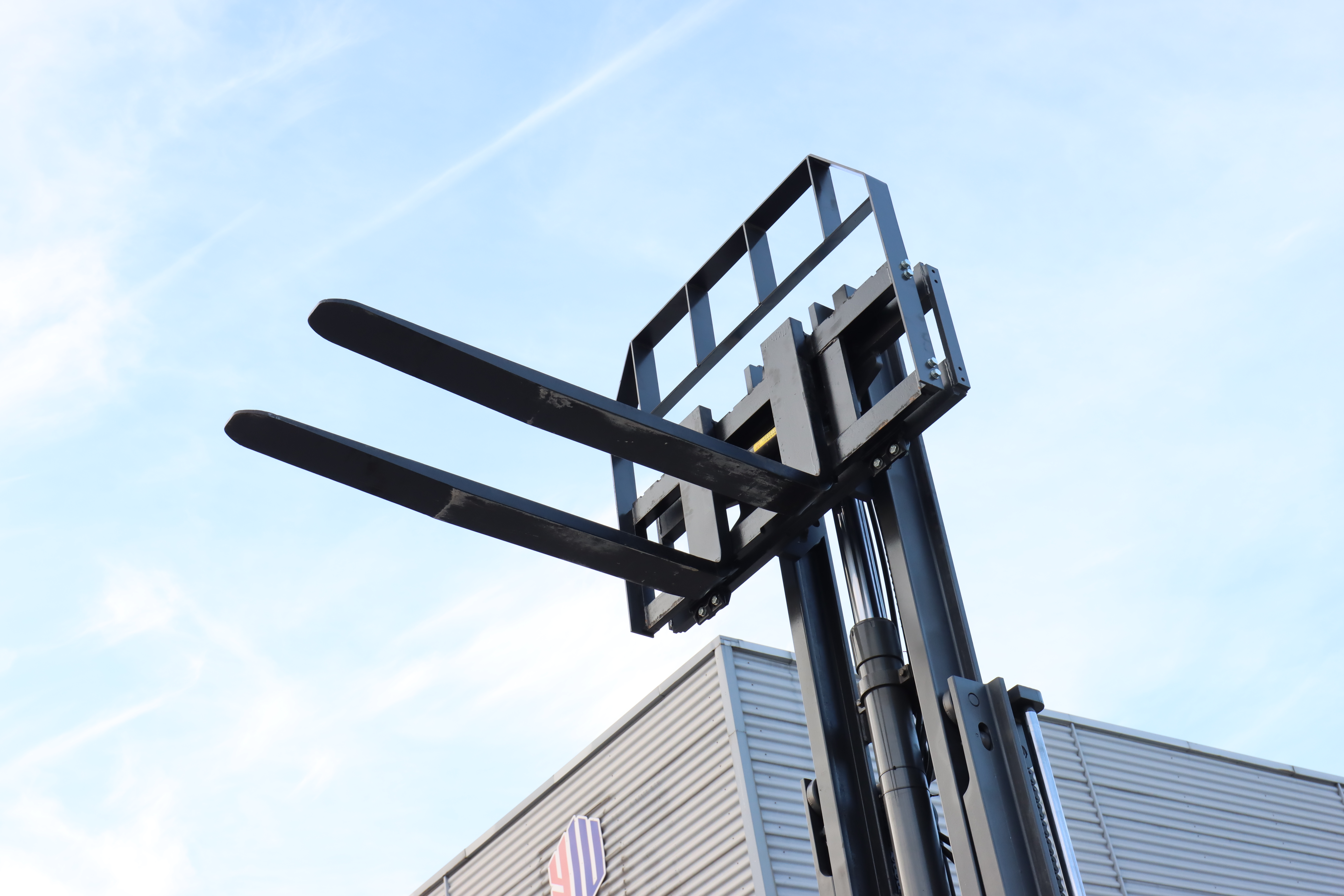

Mast and Lift Height for Fork Lift
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | / |
| 6 | 5m | / |
Product specifications
| Model | CPCD50 |
| Maximum load | 5000 |
| Standard height | 3 meters |
| Gear | Automatic transmission (dual high and low speed with running gear) |
| Mast width | 180mm |
| Articulation | Rear 200mm / front 300mm (spherical bearing) |
| Leaning angle | 10° |
| Turning radius | 3900mm (outer tire) |
| Wheelbase | 2350mm |
| Gearbox | Jinlite 280 torque converter integrated |
| Steering | Hydraulic power |
| Axle | Heavy cast steel large wheel side bridge |
| Drive mode | Four-wheel drive |
| Hydraulic system | Juliyuan gear pump. Qingchang multi-way valve |

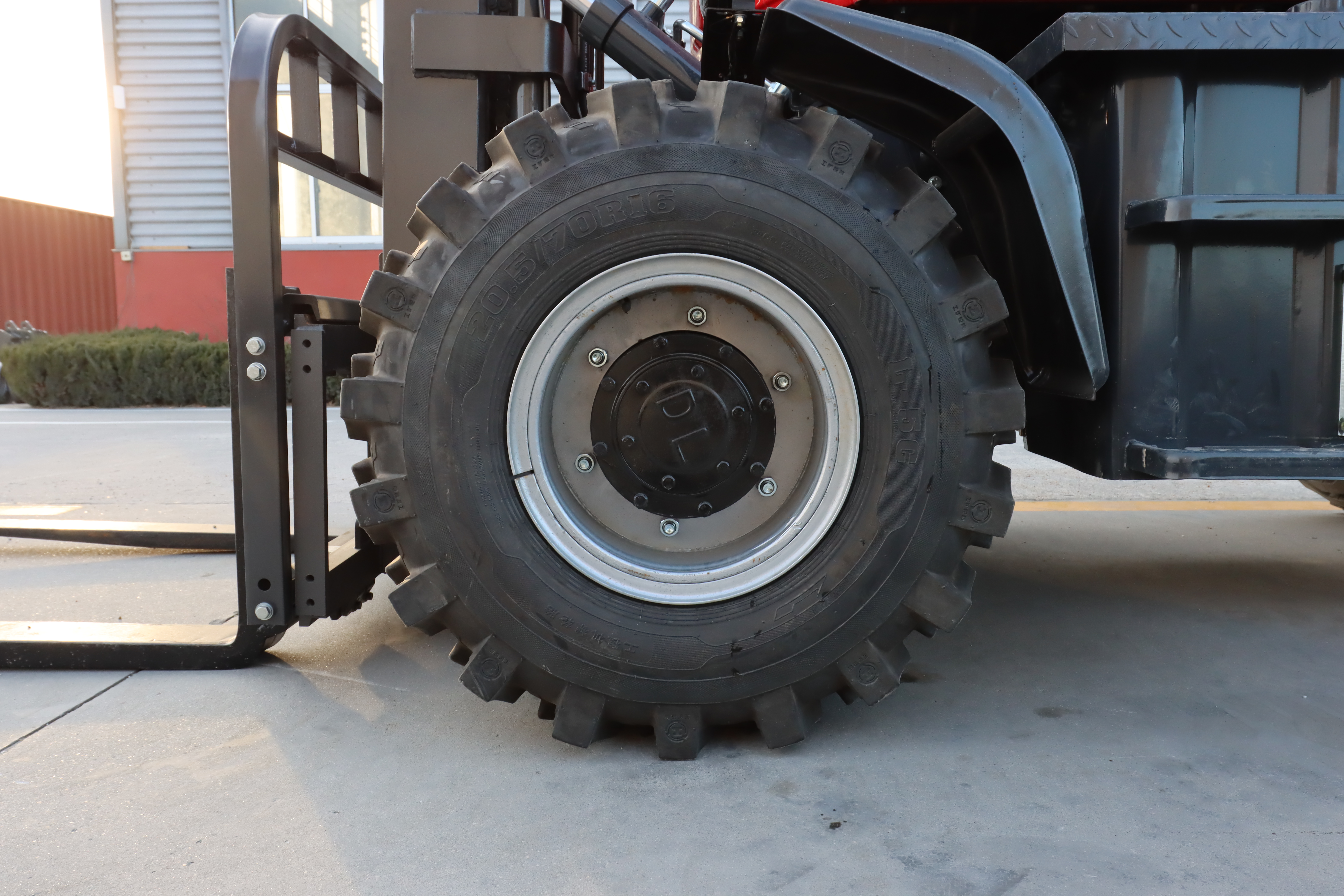

| Tire | 16/70-24 semi-solid |
| Brake | Air brake (four-wheel disc brake) |
| Weight | 5700KG |
| size | 3950 * 2100 * 2640 (mm) |
| Minimum ground clearance | 330 (mm) |
| Lifting chain | Carbon steel forging 7 pieces |
| Fork length | 1.22 meters (optional length and width) |

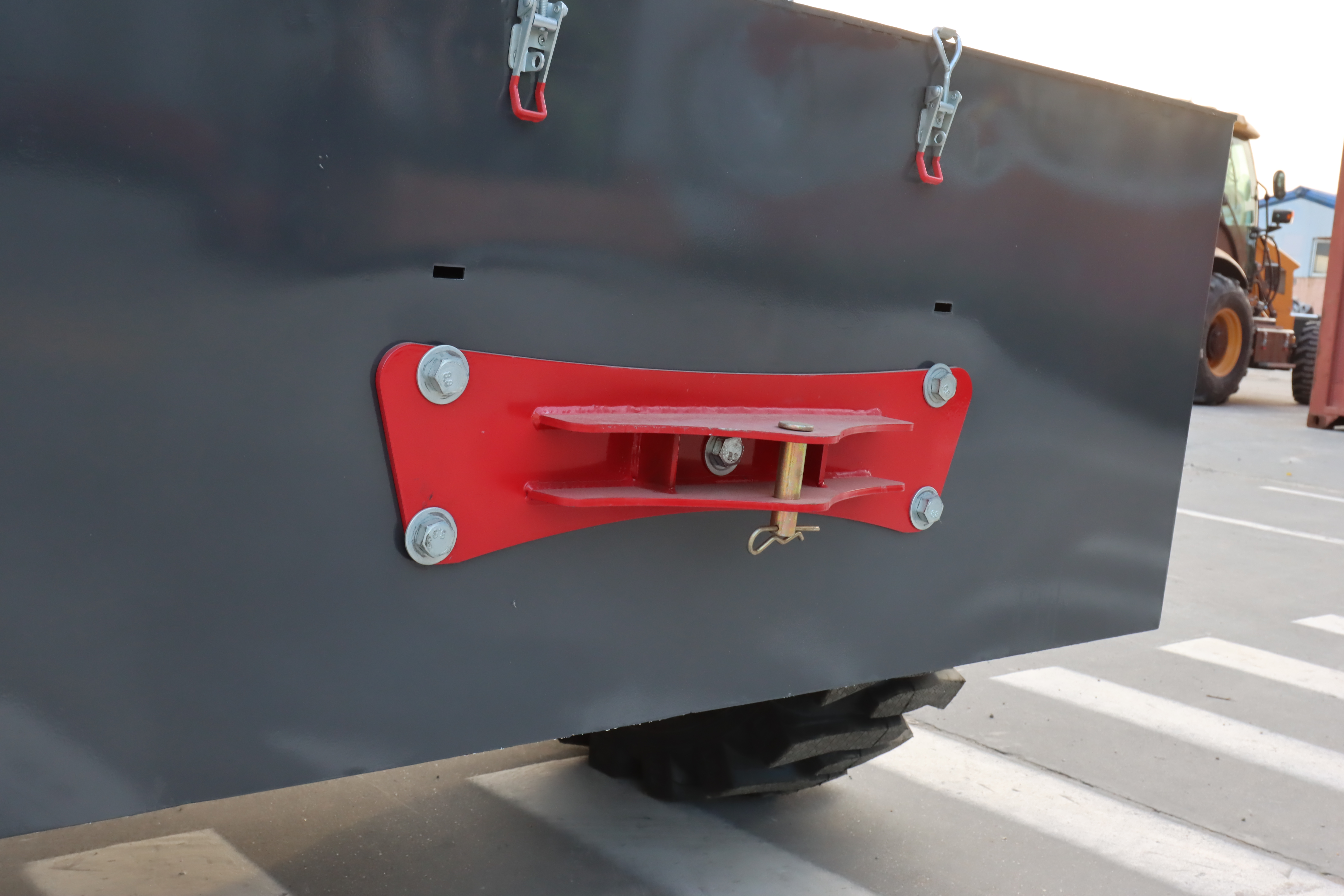

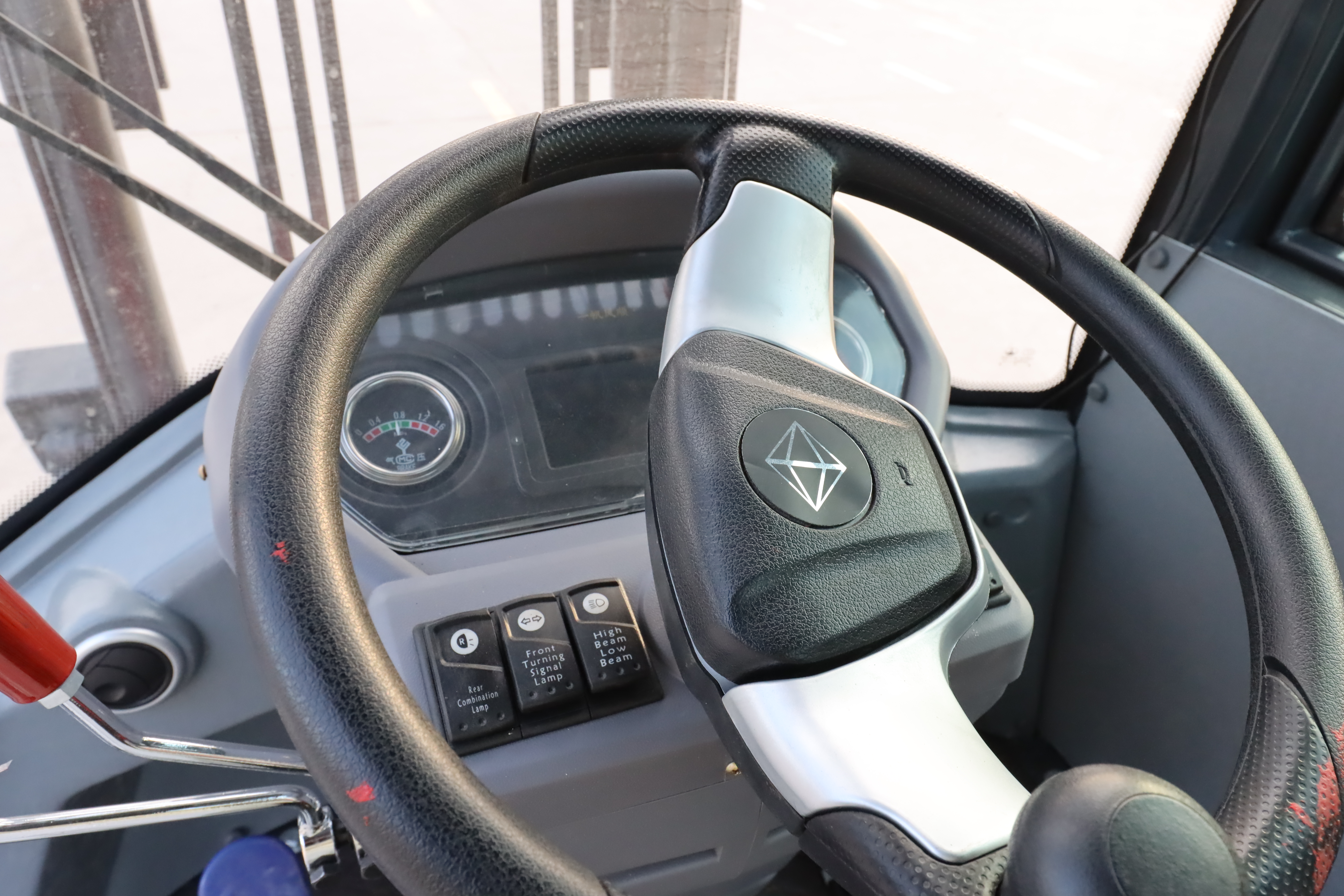

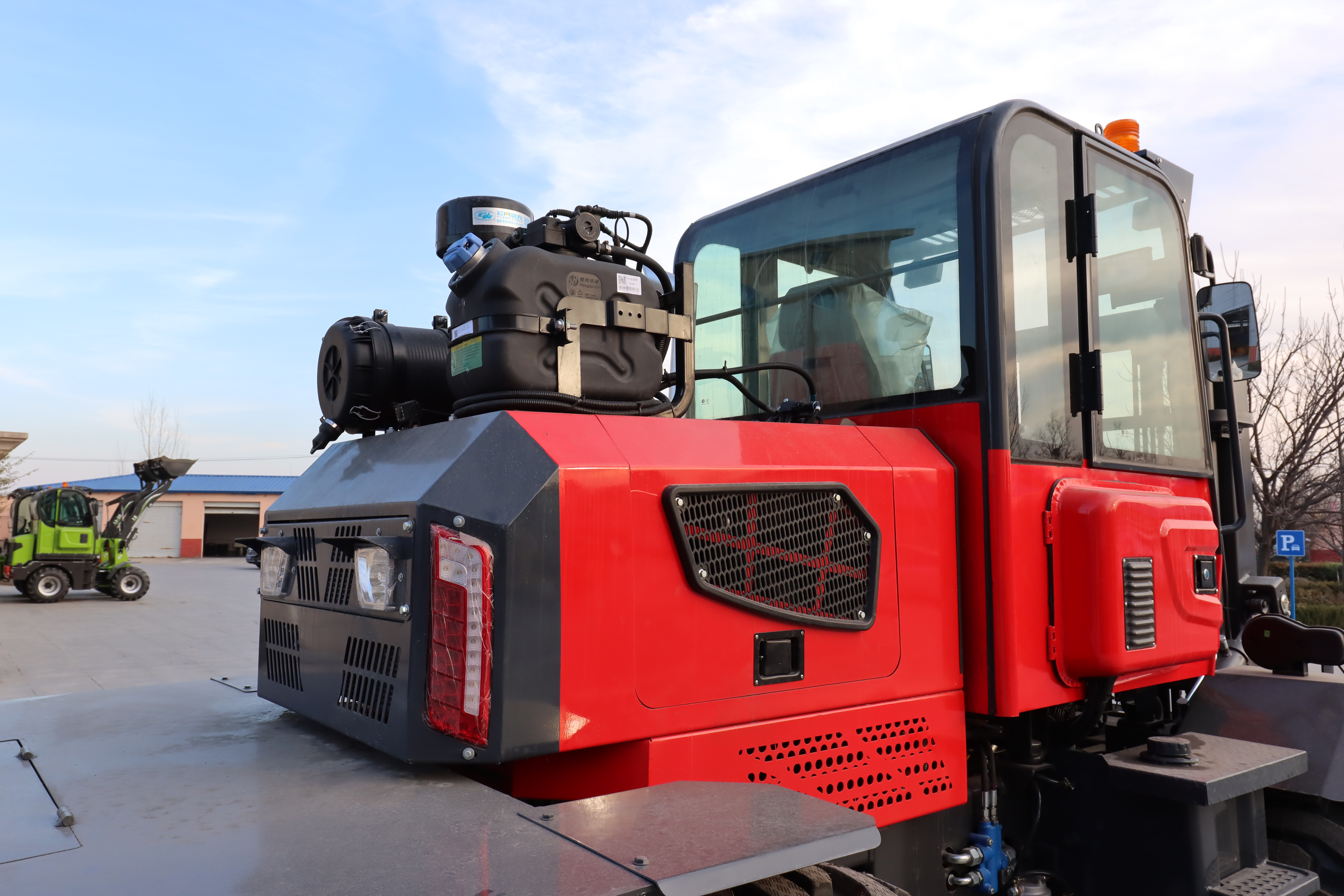

Product details:

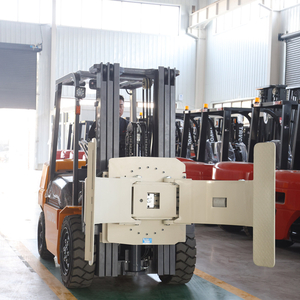

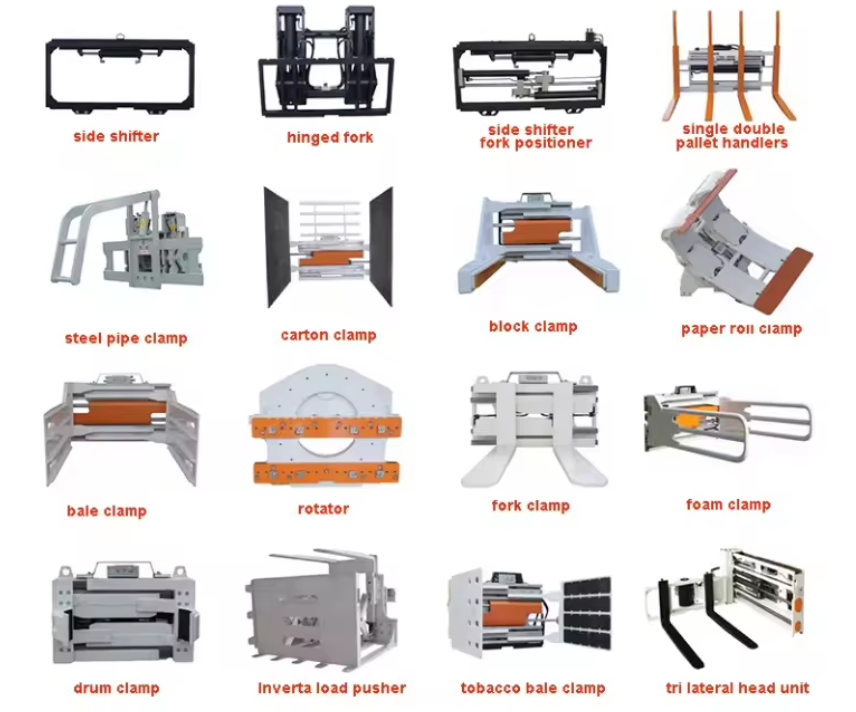

Optional aids：

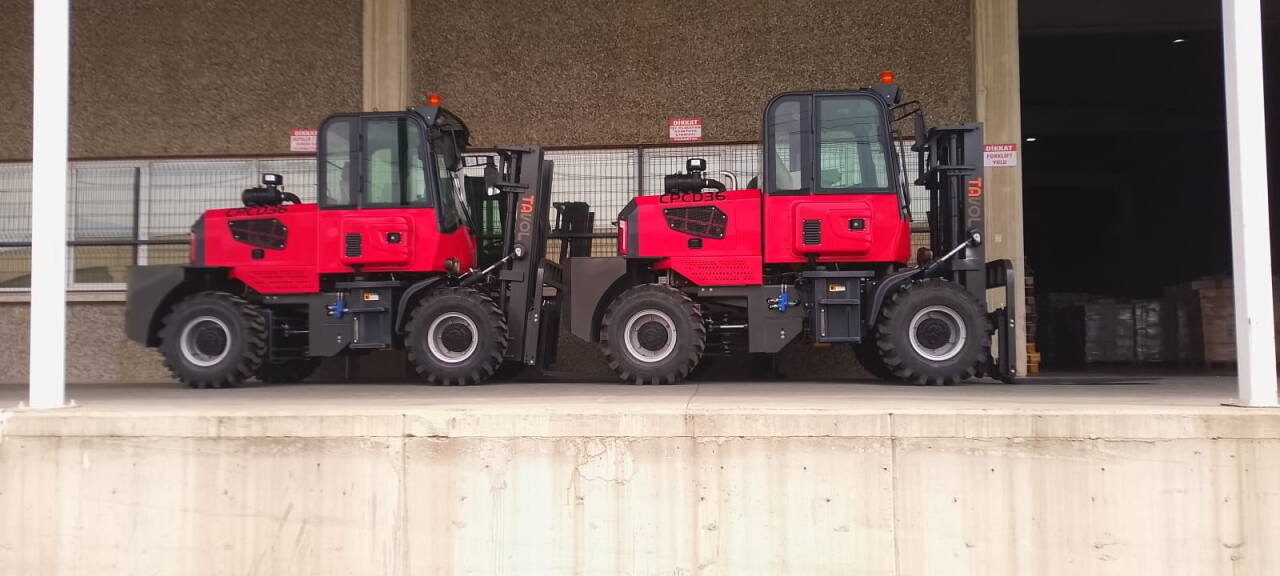

Client project in Türkiye
