CPCD80
Tavol
Tavol diesel forklift combines efficiency with elegance, featuring a streamlined design for enhanced aerodynamics and a modern, visually striking appearance. Powered by a high-performance domestic engine renowned for its robust power output, reliability, and fuel efficiency, it delivers exceptional productivity while minimizing emissions and maintenance costs.
As a professional forklift manufacturer with over 30 years of expertise since 1988, we ensure top-tier quality and rapid production—delivering finished machines within just 5-7 days. Customization and OEM services are available to meet your specific operational needs, offering tailored solutions without compromising on speed or reliability.
Technical Parameters
| Model | CPCD80 |
| Rated Loading Capacity (kg) | 8000 |
| Load Center Distance (mm) | 600 |
| Max Lifting Speed (Full load) (mm/h) | 310 |
| Max Driving Speed (Empty/Full load) (km/h) | 18/25 |
| Fork Lifting Height (mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Min. Turning Radius (mm) | 3700 |
| Min. Ground Clearance (mm) | 250 |
| Length (Including Fork) (mm) | 5160 |
| Width (mm) | 2165 |
| Height From Ground to Overhead Guard (mm) | 2700 |
| Wheel Base (mm) | 2500 |
| Front Wheel Track (mm) | 1700 |
| Rear Wheel Track (mm) | 1600 |
| Front Wheel Tyre | 9.25-15-14FR |
| Rear Wheel Tyre | 9.25-15-14FR |
| Self Weight (kg) | 10960 |
| Standard Fork Length (mm) | 1220 |
| Engine Rated Power (kw) | 85 |
| Engine Speed At Rated Power (rmp) | 2200 |
| Engine Maximum Torque (Nm) | 500 |
| Engine Speed At Maximum Torque (rpm) | 1650 |
| Variable speed form | Hydraulic |
Optional:
1.Engine: Standard China Xinchai engine,optional Japan Isuzu and Perkins engine and others.
2.Transmission: Automatic transmission can be choosen.
3.Mast: Standard 2-stages 3000mm mast, optional 3-stages 4500mm -5000mm mast and others.
4.Fork: Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks.
5.Attachment: Side shifter, fork positioner, 360 degree rotator,bale clamp, paper roll clamp and other attachments are supported.
6.Tires: Standard pneumatic tire, optional solid tire.
XINCHAI Engine |
XINCHAI Euro 5 Engine |
ISUZU Engine |

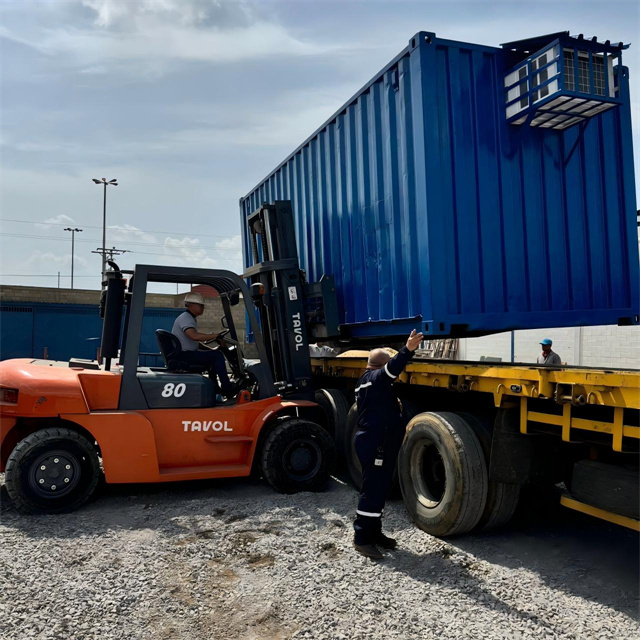

Success Case
 | |  |
|  |  |
