CPD20
Tavol

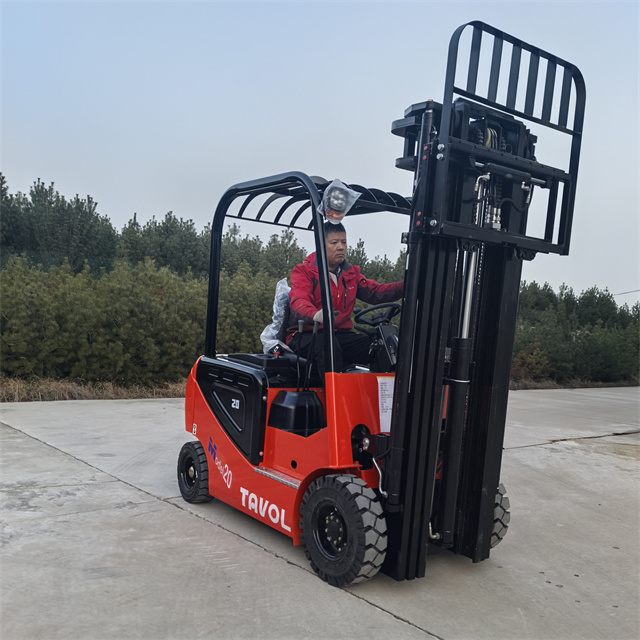

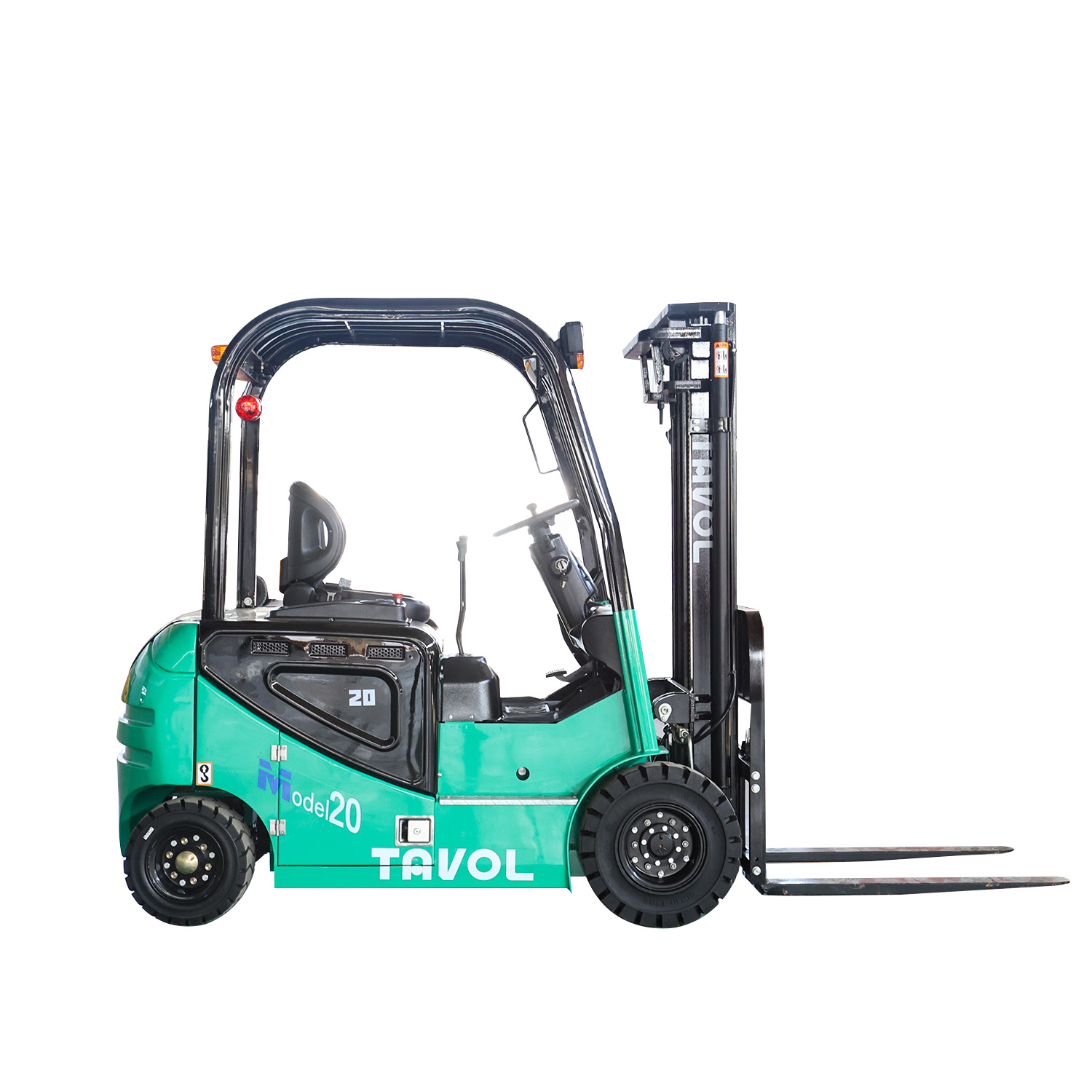

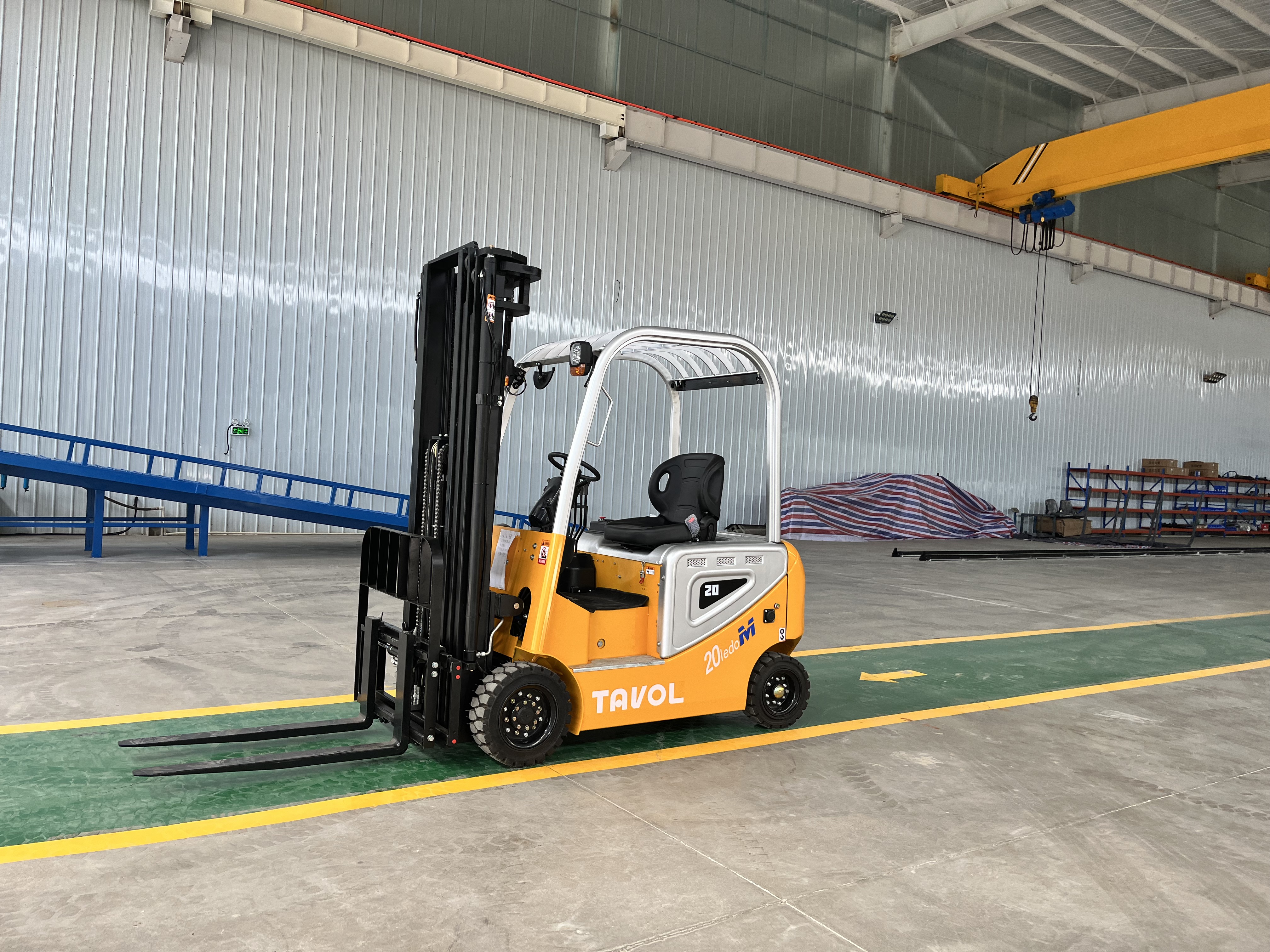

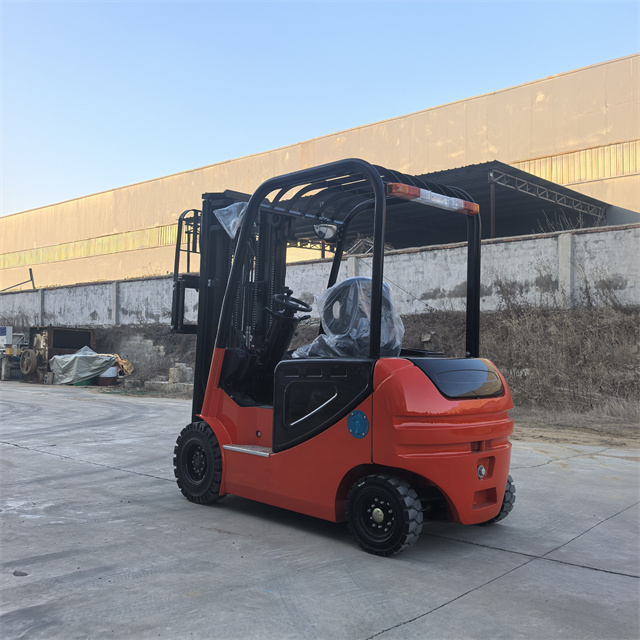

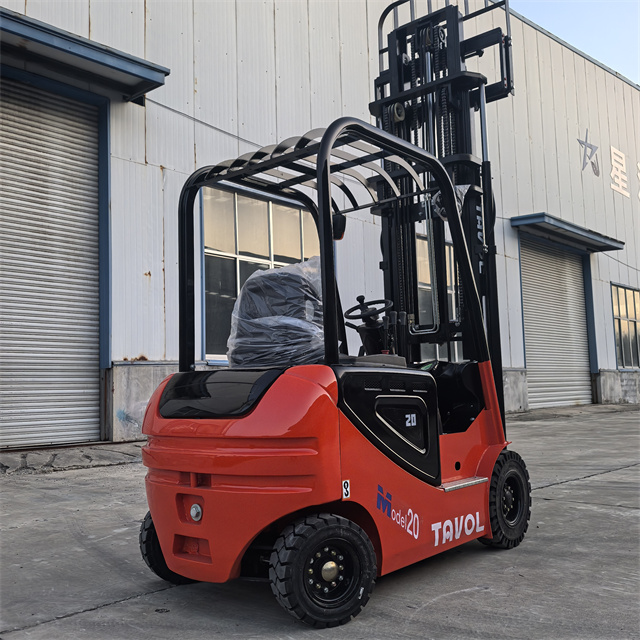

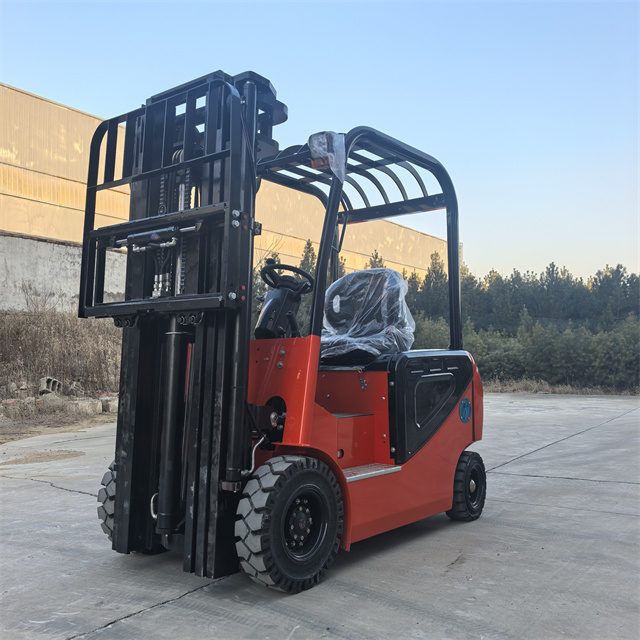

The 2-ton electric fork plays an important role in modern logistics and production fields with its high efficiency, flexible operation, safety and reliability, energy saving and environmental protection. It can quickly and accurately transport and stack various heavy goods, improve operating efficiency and optimize inventory management.
The Advantage of Tavol 2T Electric Forklift
1. It adopts high-performance AC motor, which has strong power, fast lifting and traveling speed, and can meet the needs of efficient operation.
2. Full hydraulic steering system, flexible operation, small turning radius, suitable for narrow channel operations.
3. Electric drive, zero emission, no pollution, and meets environmental protection requirements.
4. The equipment has a compact structure, parts are easy to disassemble and replace, and maintenance is convenient.
| Model | CPD20 |
| Loading Capacity(kg) | 2000 |
| Load Center Distance (mm) | 500 |
| Drive Form | battery |
| Fork Lifting Height (mm) | 3000 |
| Length (Including Fork) (mm) | 3300 |
| Width (mm) | 1096 |
| Height (Door Frame Indented) (mm) | 2110 |
| Max working Height (mm) | 4055 |
| Wheel Base (mm) | 1550 |
| Wheel Track (Front/Rear) (mm) | 945\880 |
| Front Overhang (mm) | 325 |
| Wheel Tyre (Front/Rear) | 18&7-10 15*4 2\1-8 |
| Self Weight (kg) | 2850 |
| Fork Width (mm) | 100 |
| Fork Thickness (mm) | 40 |
| Standard Fork Length (mm) | 1070 |
| Battery (Voltage/Capacity) | 72V\210ah |
Optional:
1. China top brand lithium battery,80V/150Ah,76.8V/205Ah,76.8V/280Ah,
76.8V/350AH,80V/525AH,lead acid battery optional,water automatic filling system is poptional;
2.Mast optional: 3/4m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3.Forks: 1070/1220/1370/1520/1670/1820/1970mm
4.Transmission: Automatic/manual;
5.Tire: pneumatic/Solid/non-mark solid;
6. Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc..
7. Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
Company Information :
TAVOL Group was founded in 2011 and is located at the foot of Mount Tai. A Chinese material handling equipment manufacturing brand to help your career rise. The main design, development and manufacture of 1-10 tons diesel forklift, 1-3.5 tons electric forklift,1-4 tons dual gas dual gasoline forklift, lifting height of 3-6 meters; High-altitude lifting equipment.
Please contact us for more information:
