CPCD25
Tavol
Technical Parameters
Model | CPCD25 | |||||
Rated capacity | KG | 2500 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 60 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 400 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 17/19 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2450 | ||||
The minimum clearance from the ground | MM | 110 | ||||
Wheelbase | MM | 1640 | ||||
Wheel tread | F/R | MM | 970/970 | |||
front overhang | MM | 451 | ||||
Dimensions | Length | With fork | MM | 3605 | ||
Width | MM | 1160 | ||||
Closed mast height | MM | 2095 | ||||
Overhead guard height | MM | 2095 | ||||
Max. Height at work | With/without backrest | MM | 4080 | |||
Fork size | LXWXT | MM | 1220x122x40 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 3600 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||

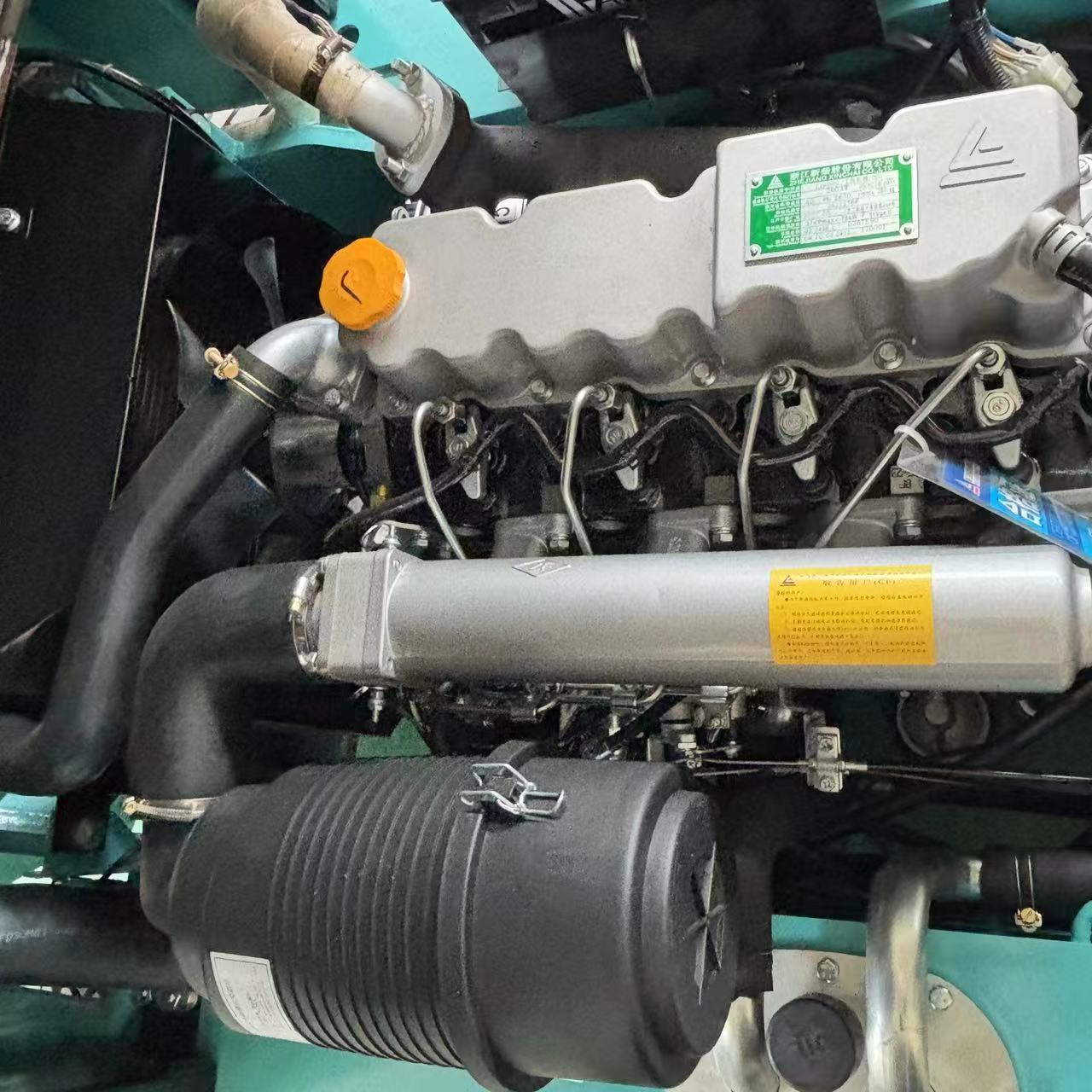

Motor | Brand | Xinchai 4D29V41 | ||||
Maximum output power(Kw) | 36.8 | |||||
Rated speed(rpm) | 2400 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600-1800 | |||||
The engine form | Hydraulic | |||||

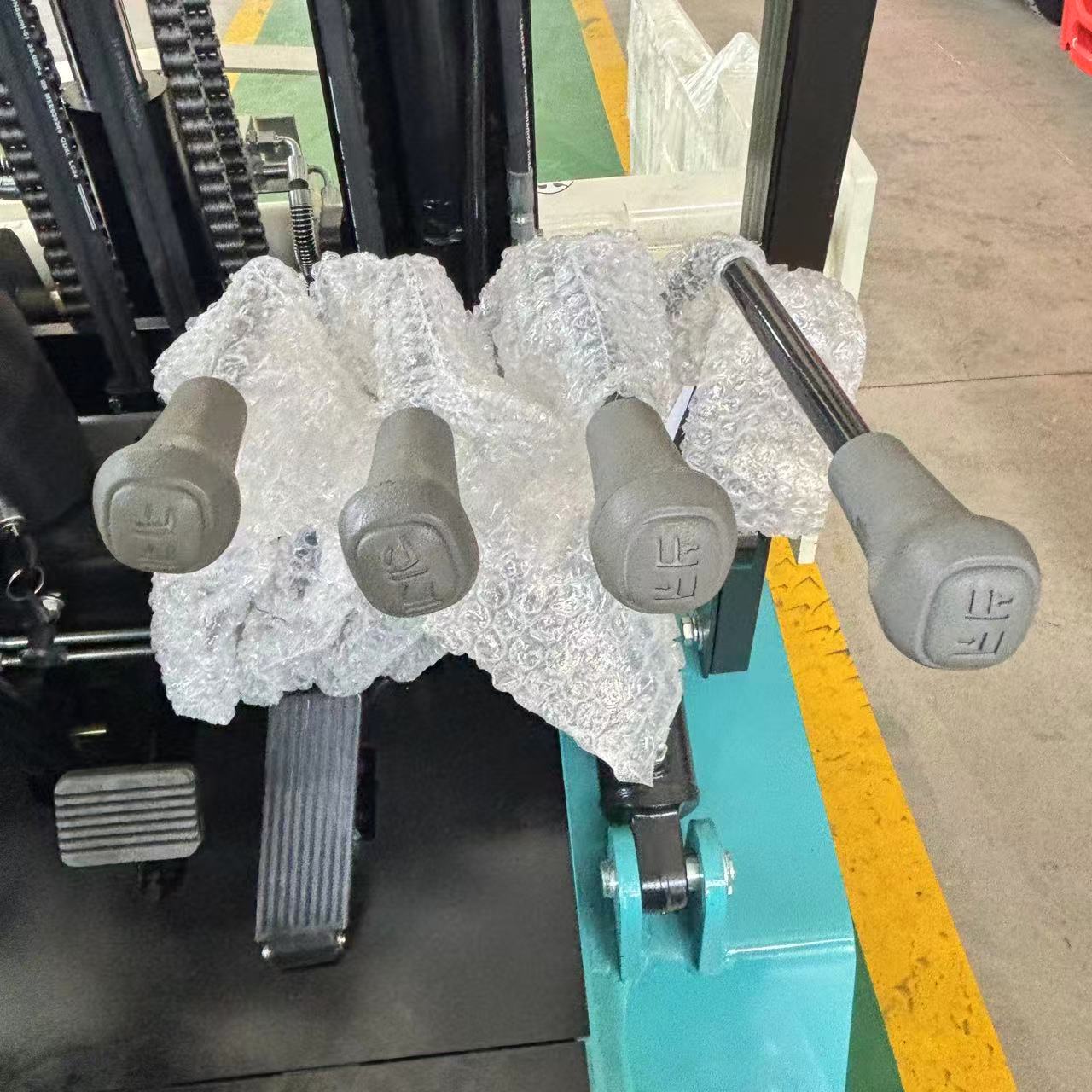

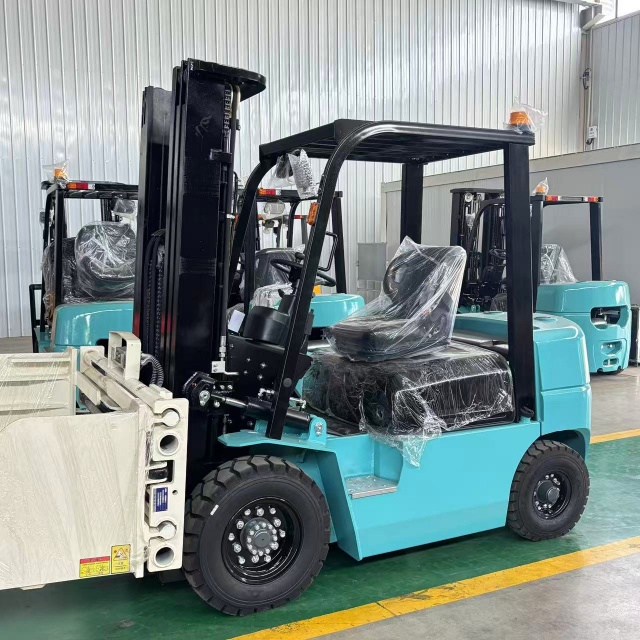

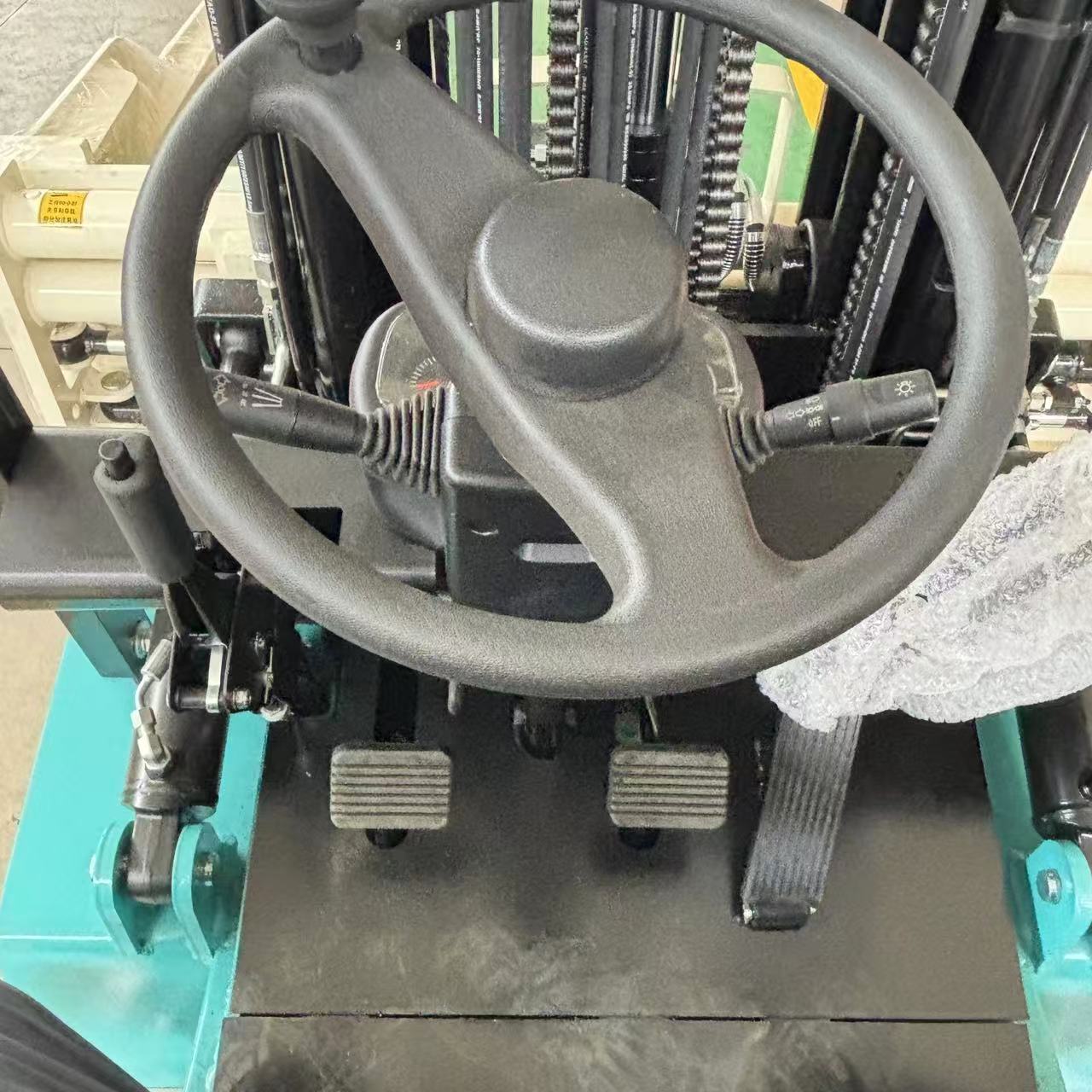

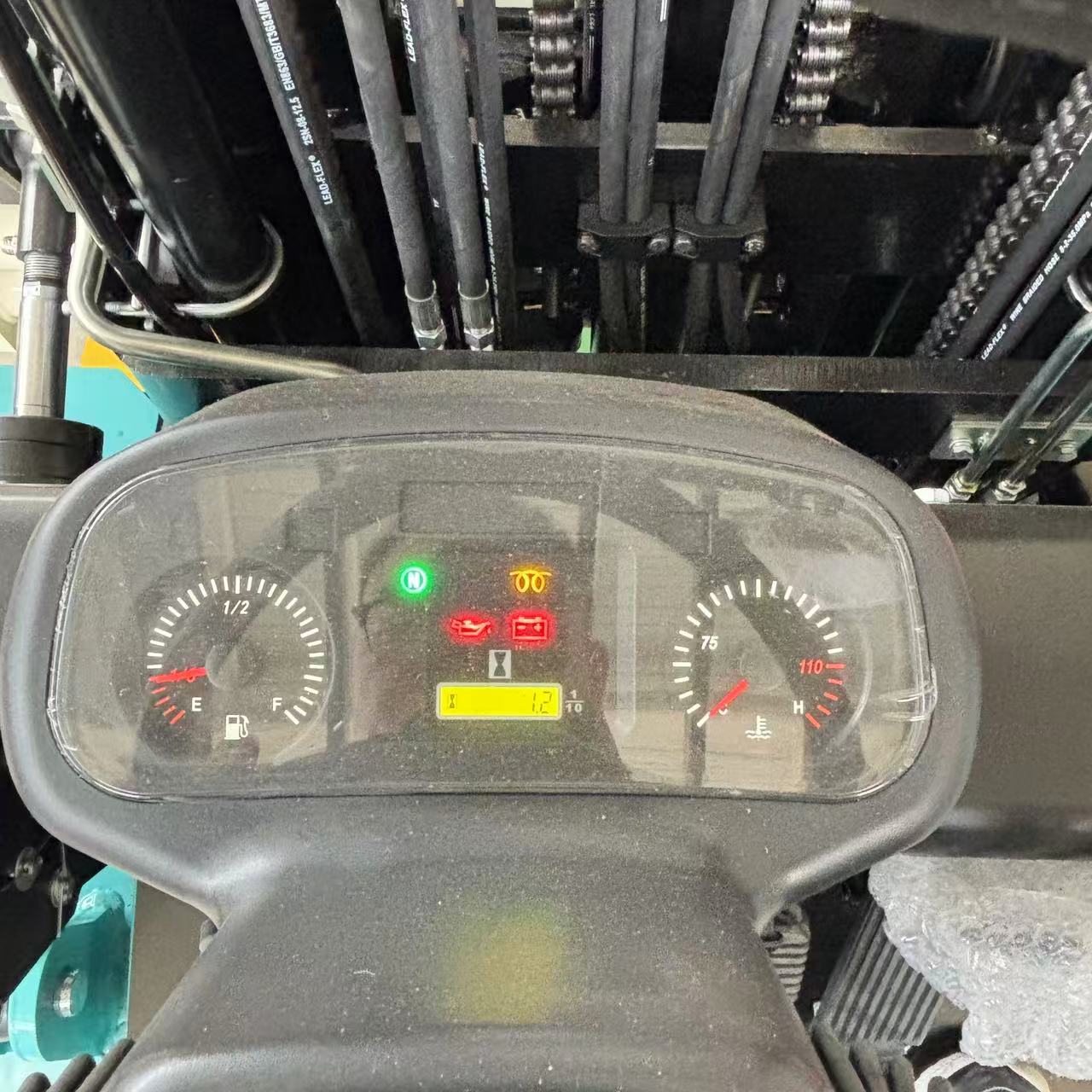

Product details:

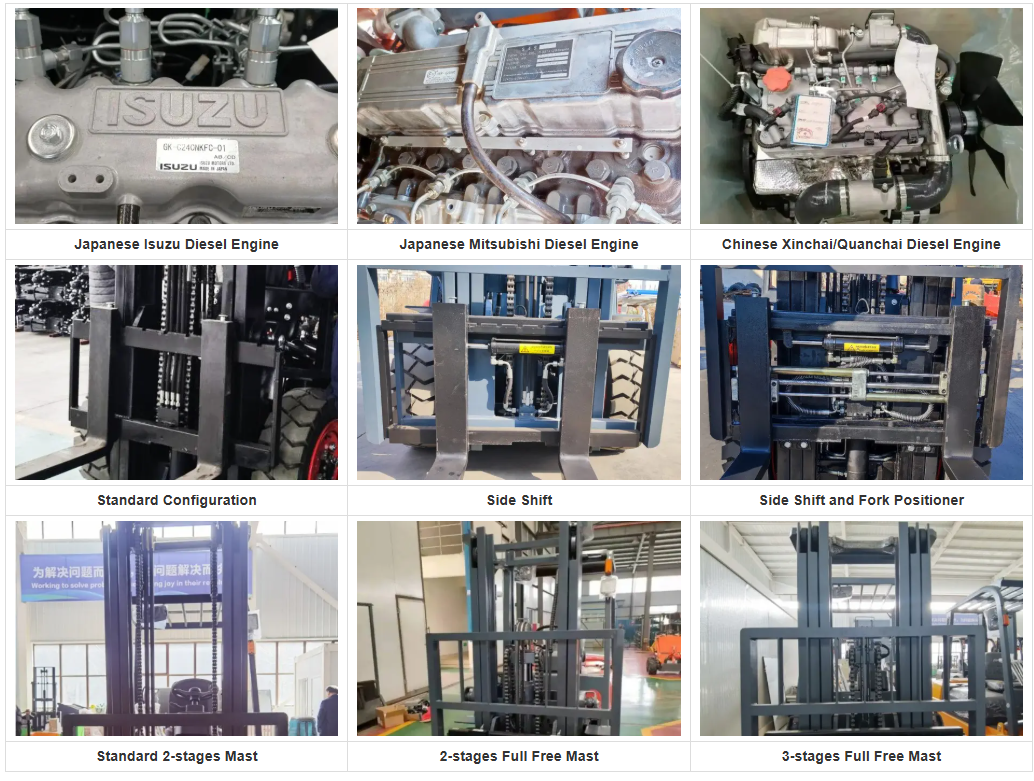

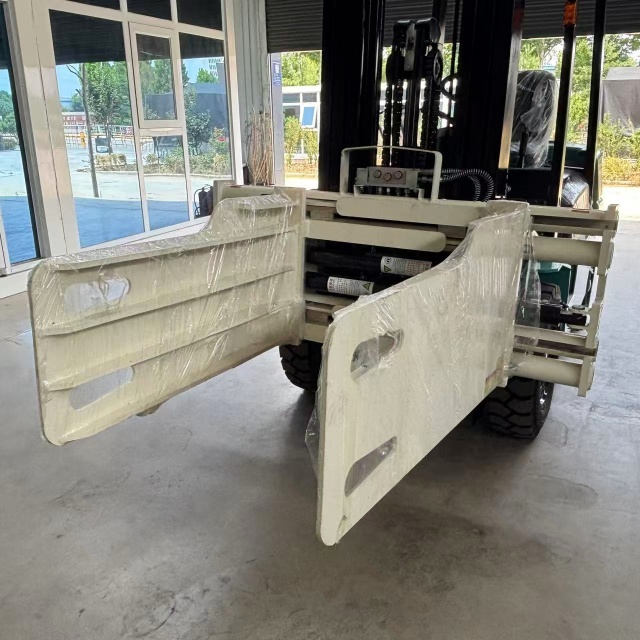

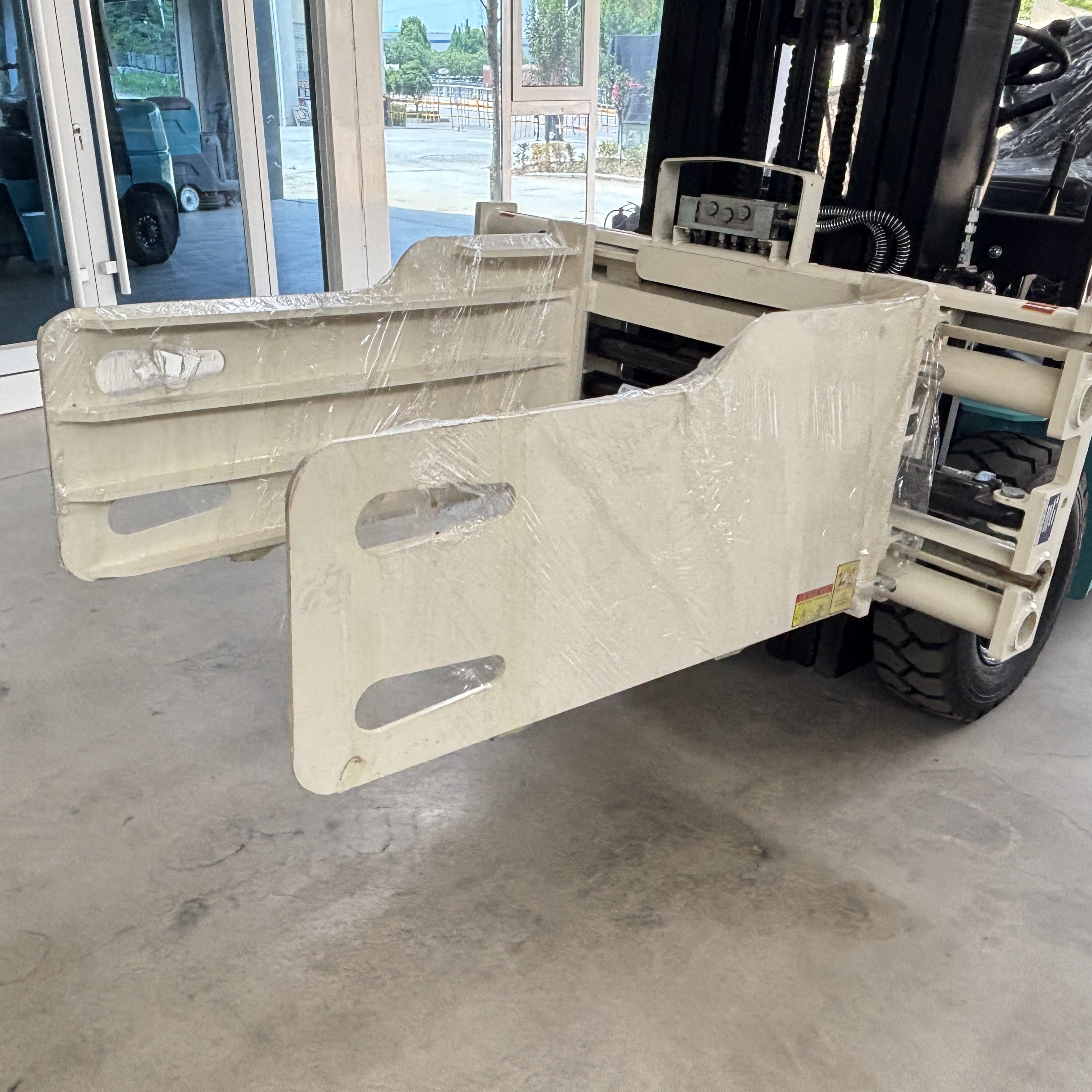

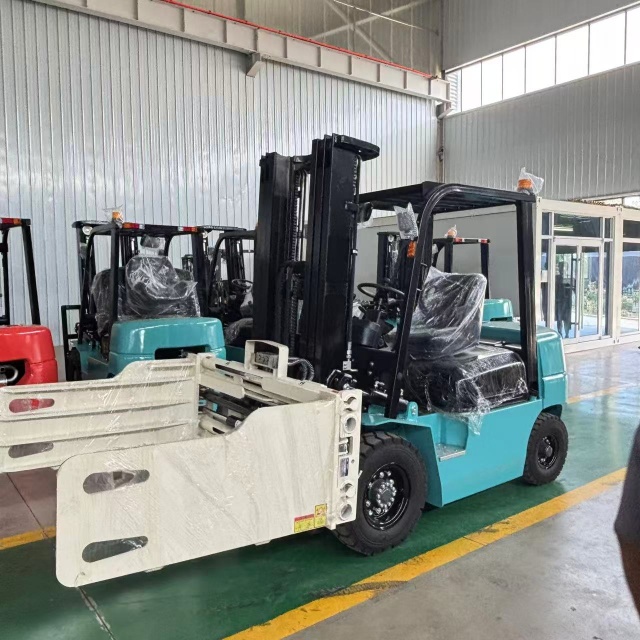

Optional:
Customer feedback

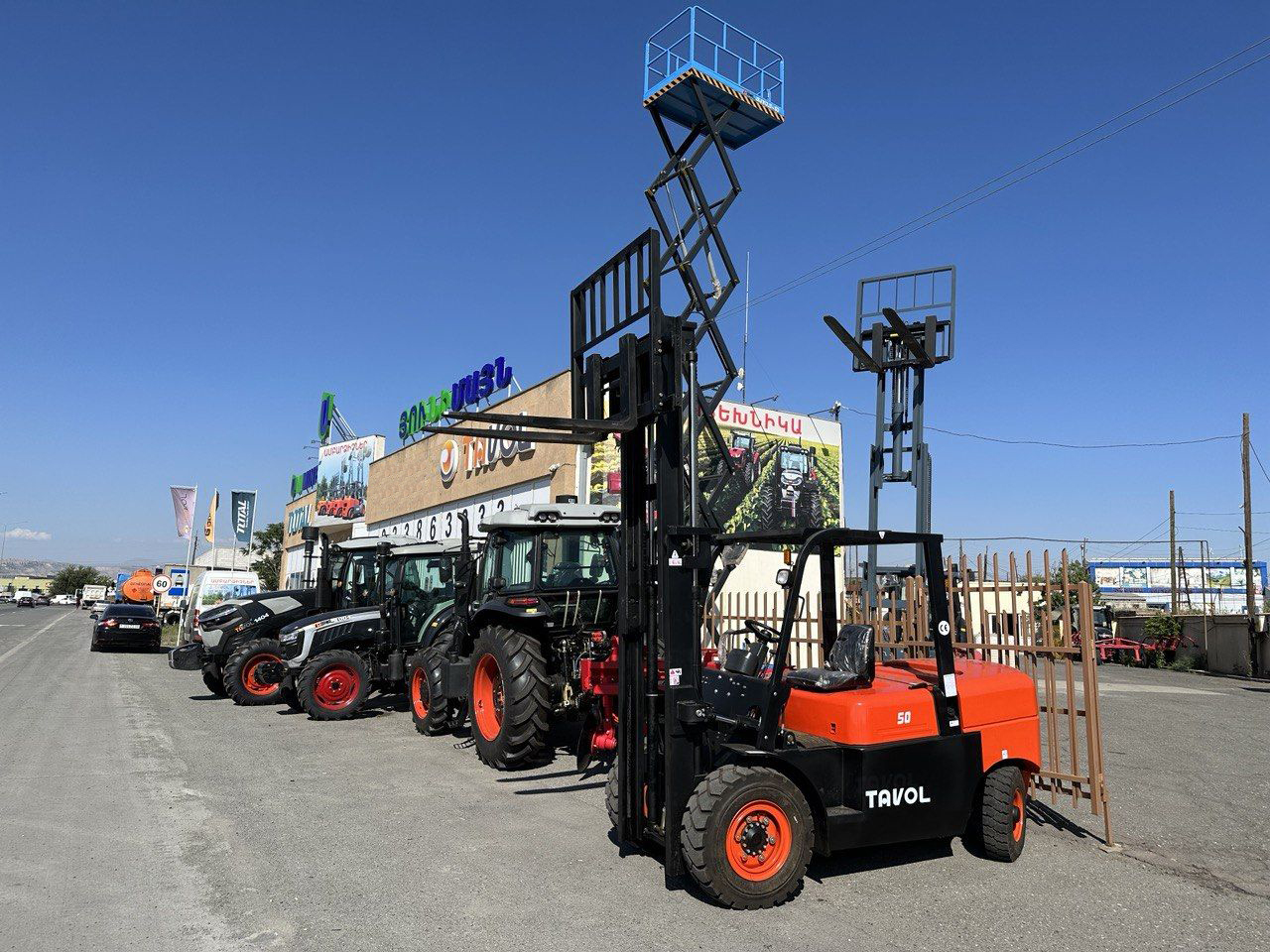

Project in Armenia
Project in Azerbaijan

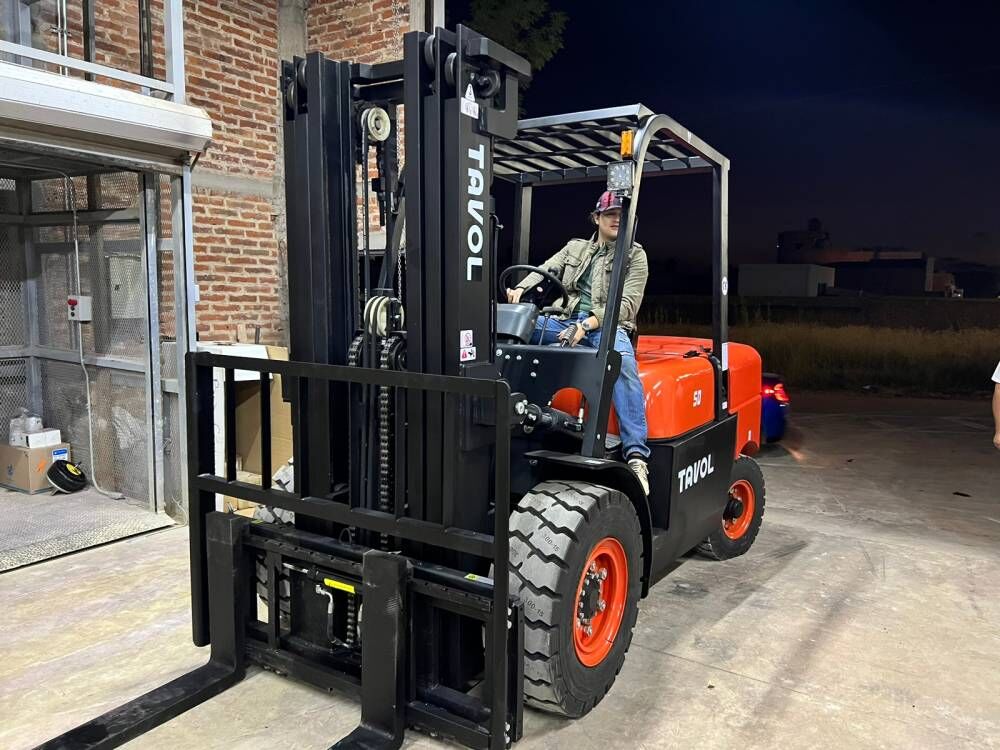

Project in Mexico
We
