Tavol Farm 70hp Agricultural Tractor 4wd Wheel Farm Tractor

Name: Tavol Farm 70hp Agricultural Tractor 4wd Wheel Farm Tractor
Brand: TAVOL
Rating: 5.0 (84 reviews)

Tavol 70hp tractor uses an efficient and energy-saving engine with stable power and good fuel economy, suitable for small and medium-sized farmland operations. Equipped with an 8+8 gearbox, it is easy and flexible to operate and can adapt to various agricultural needs such as plowing, rotary tillage, and sowing. Four-wheel drive is optional to enhance the passability of complex terrain such as muddy and sloping land.

Availability:

Quantity:



Inquire Add to Basket

Model:
TL704
Brand:
TAVOL
Code:
8701931000

Product Description

Technical Parameters

Model		Tavol-704
Machine parameters	Type	4×4
	Rated Traction( KN)	14
	PTO Max Power (KW)	43
	Dimensions(mm)	3910×1720×2600
Wheelbase(mm)		1700
Track(mm)	Front wheel(mm)	850-1400
Track(mm)	Rear wheel(mm)	850-1400
Ground clearance(mm)	Minimum ground clearance(mm)	380
Minimum turning cricle radius	Use unilateral braking	≤3.6
Minimum turning cricle radius	Not unilateral braking	≤3.8
Minimum use qu:ality		2440
Gearbox	8F+8R Shuttle Shift
Steering System	hydraulic steering gear
Drive Train	Clutch	double acting clutch
Working equipment	Maximum lifting force at 610mm(KN)	12

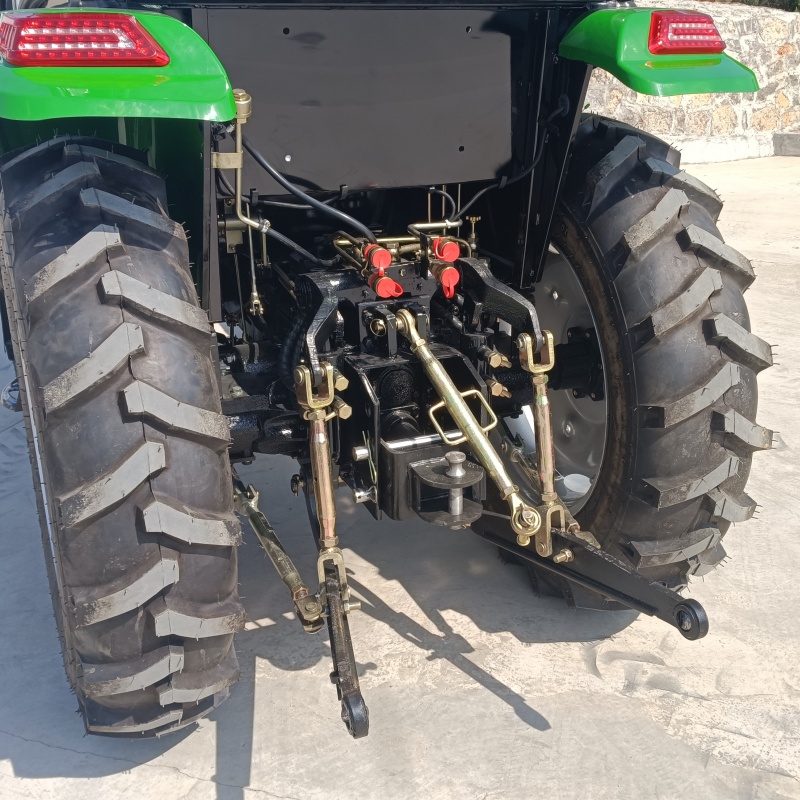

Working equipment	Suspension mechanism	Three-piont suspension type 1
PTO shaft	PTO Spedd(r/min)	540/760/1000
Tire	Front wheel specifications	7.5-16

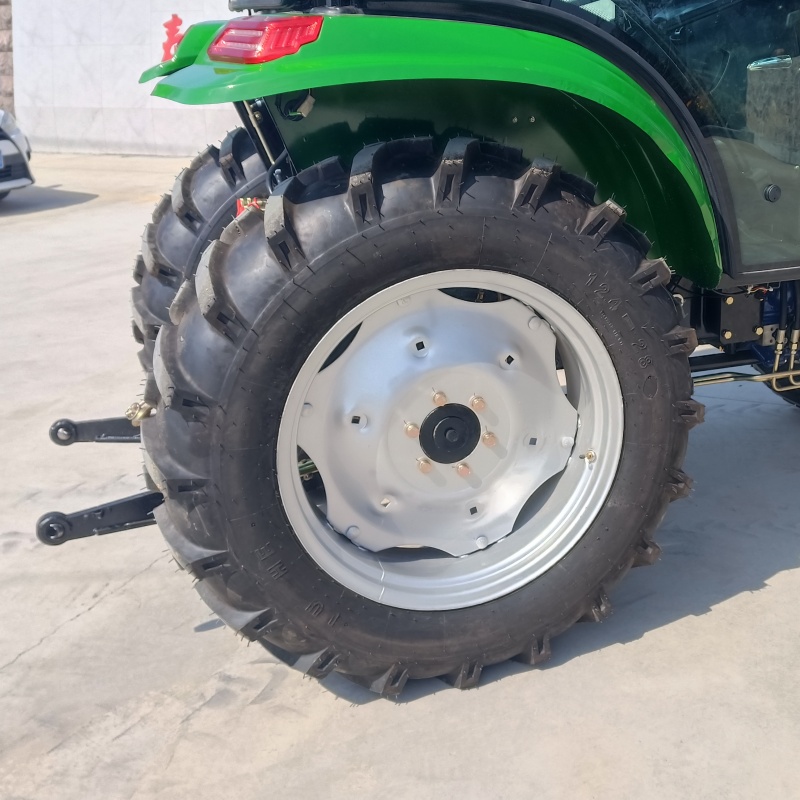

Tire	Rear wheel specifications	12.4-24
Engine	Type	Inline, 4 stroke, Water cooled
Engine	Cylinder	4

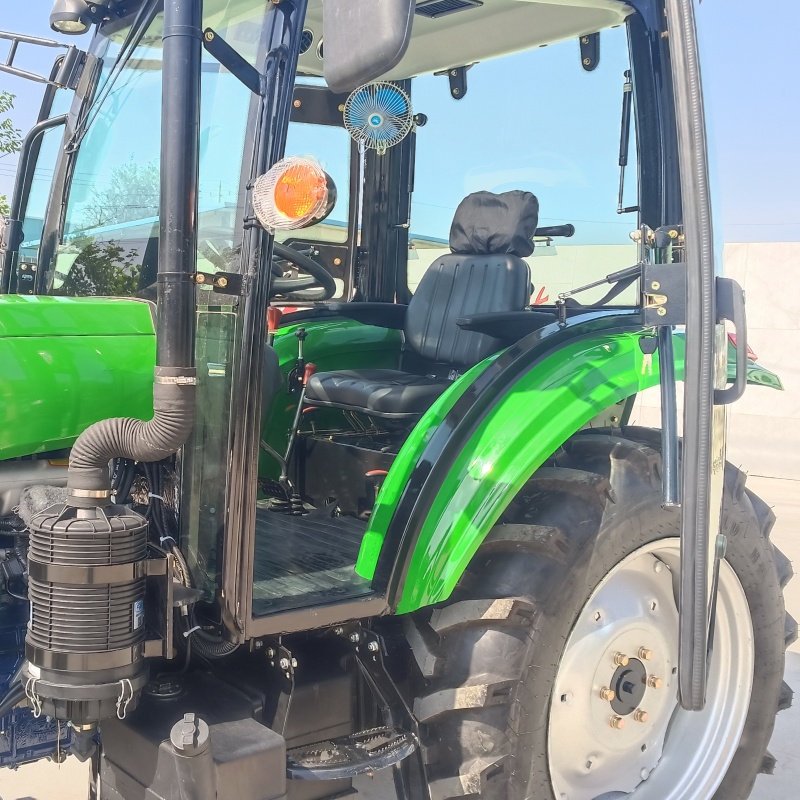

Optional	Cabin	AC/Heater
	Roll bar
	Canopy
Perfusion volume	Radiater(L)	10
	Fuel tank(L)	60
	Engine oil pan(L)	5
	Driveline oil (L)	20
	Lifter(L)	9.5
This parameter table is for reference only, everything is based on actual products
