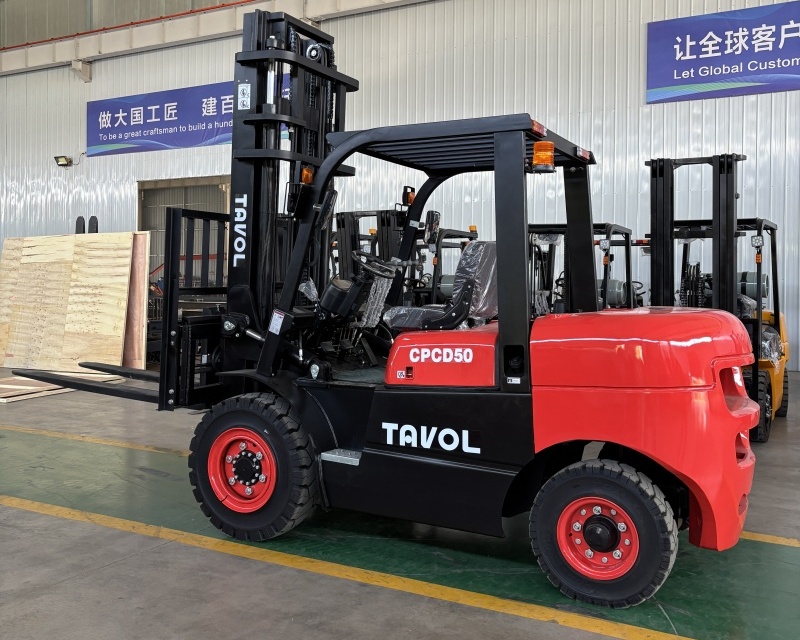

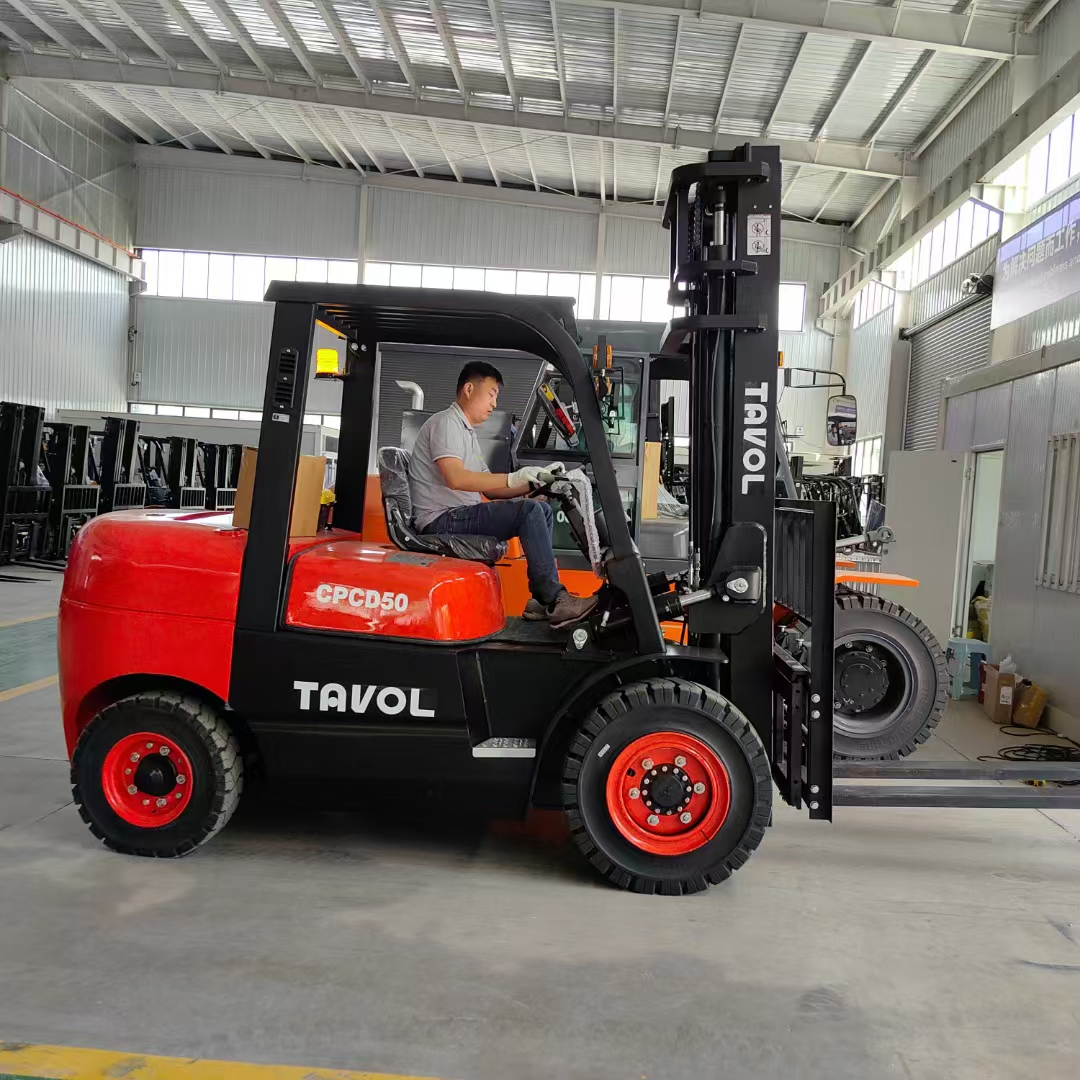

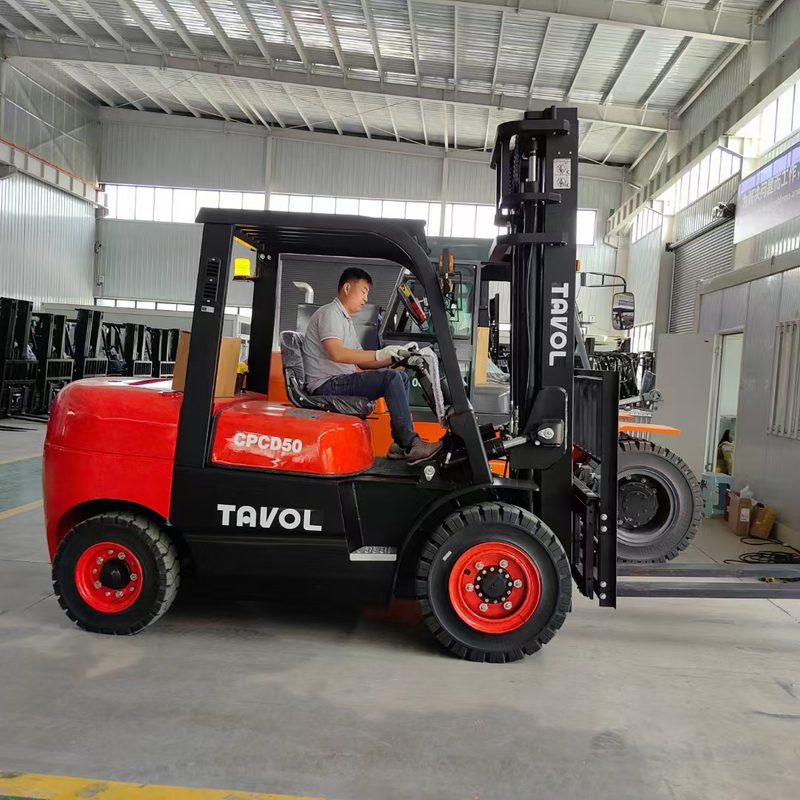

CPCD50
Tavol
8427209000
Tavol forklifts have a streamlined design that makes the appearance more aesthetically pleasing. It adopts a well-known domestic engine brand, with strong power, reliable performance, convenient maintenance, low emission and low fuel consumption. Our forklifts can reduce your costs and provide you with greater productivity and profitability.
Ports & Terminals: Handling light cargo and working in warehouse areas.
Feature
1. The post-treatment adopts the dual strategy of driving regeneration and parking regeneration to minimize the carbon accumulation level and the cleaning cycle is longer;
2. Reasonable optimization of the cooling system, greatly improved cooling performance, thereby improving the reliability and durability of key components such as transmission and engine;
3. The whole car is equipped with a full set of LED lamps, energy saving, while greatly improving the service life of lamps;
4. Hydraulic system load sensing technology, reduce energy loss, energy saving and consumption;
5. The strength of the core structural parts of the car body, door frame and hood is greatly improved, making the vehicle stronger.
Technical Parameters
| type | CPCD50 |
| Rated load capacity(kg) | 5000 |
| Load center distance (mm) | 500 |
| Maximum lifting speed (full load) (mm/h) | 375 |
| Maximum travel speed (unloaded/fully loaded) (km/h) | 20/24 |
| Fork lifting height (mm) | 3000 |
| Mast tilt angle (forward and backward) | 6°/12° |
| Minimum turning radius (mm) | 3000 |
| Minimum Ground Clearance (mm) | 170 |
| Length (including forks) (mm) | 4350 |
| Width (mm) | 1400 |
| Height from ground to overhead guards (mm) | 2330 |
| Front overhang (mm) | 585 |
| Wheelbase (mm) | 2150 |
| Front track (mm) | 1180 |
| Rear track (mm) | 1190 |
| Front tyres | 300-15 |
| Rear tires | 7.0-12 |
| Self-weight(kg) | 6800 |
| Standard fork length (mm) | 1220 |
| Engine rated power (kw) | 62.5 |
| Engine speed at rated power (rmp) | 2200 |
| Maximum Engine Torque (Nm) | 320 |
| Engine speed at maximum torque (rpm). | 1800 |
| Variable speed form | hydraulic |
