CPCD30
Tavol
8427209000

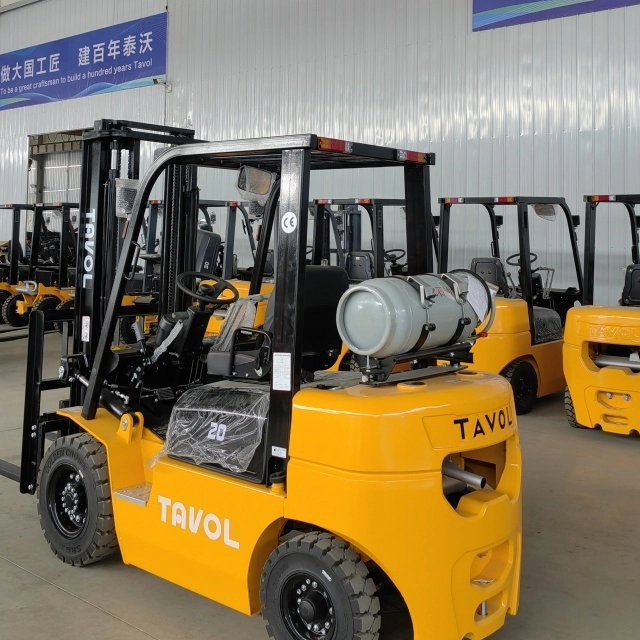

Tavol forklift adopts the streamline design that makes the appearance more pleasing, using domestic well-known engine brand which is powerful, dependable, easy to service, and with low emissions and fuel consumption. Our forklift can reduce your cost,provide greater productivity and profitability for you.
Technical Parameters
| Model | CPC20/ CPCD20 |
| Rated Loading Capacity (kg) | 2000 |
| Load Center Distance (mm) | 500 |
| Max Lifting Speed (Full load) (mm/h) | 400 |
| Max Driving Speed (Empty/Full load) (km/h) | 17/19 |
| Fork Lifting Height (mm) | 3000 |
| Mast Tilt Angle (Forward andBackward) | 6°/12° |
| Min. Turning Radius (mm) | 2450 |
| Min. Ground Clearance (mm) | 110 |
| Length (Including Fork) (mm) | 3605 |
| Width (mm) | 1160 |
| Height From Ground to Overhead Guard (mm) | 2095 |
| Front Overhang (mm) | 451 |
| Wheel Base (mm) | 1640 |
| Front Wheel Track (mm) | 970 |
| Rear Wheel Track (mm) | 970 |
| Front Wheel Tyre | 7.00-12 |
| Rear Wheel Tyre | 6.00-9 |
| Self Weight (kg) | 3320 |
| Standard Fork Length (mm) | 1070 |
| Engine Rated Power (kw) | 36.8 |
| Engine Speed At Rated Power (rmp) | 2500 |
| Engine Maximum Torque (Nm) | 157 |
| Engine Speed At Maximum Torque (rpm) | 1800 |
| Variable speed form | Mechanical/ Hydraulic |
Customer Feedback
 |  |  |
 |
|  |
 |
|  |
Forklift Attachment
Contact us
Shirley Yu, Whatsapp: +86 18953348483, E-Mail: sls36@tavolgroup.com, Mobile/Wechat: +86 18779384380
