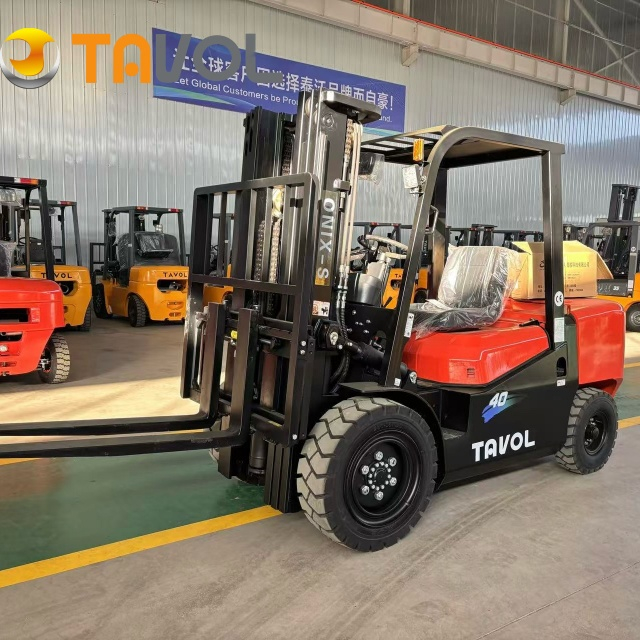

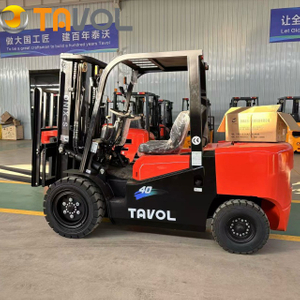

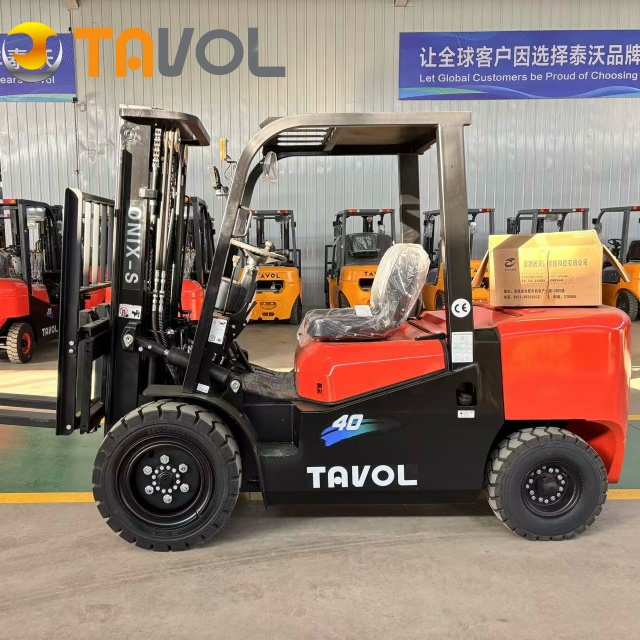

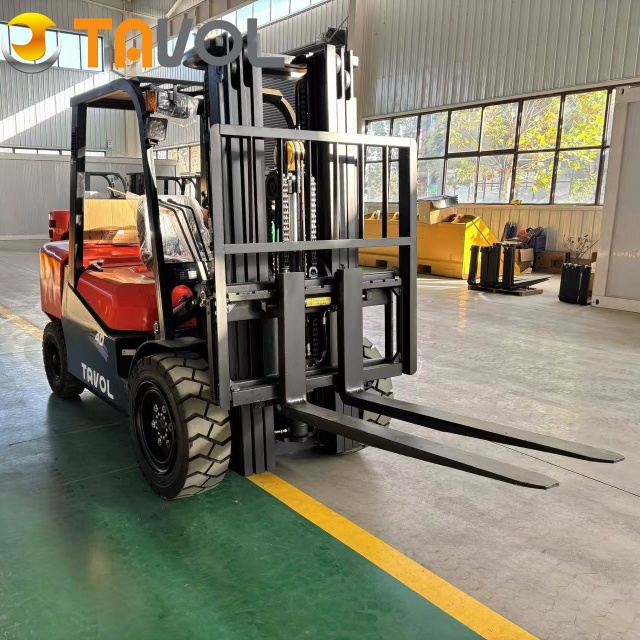

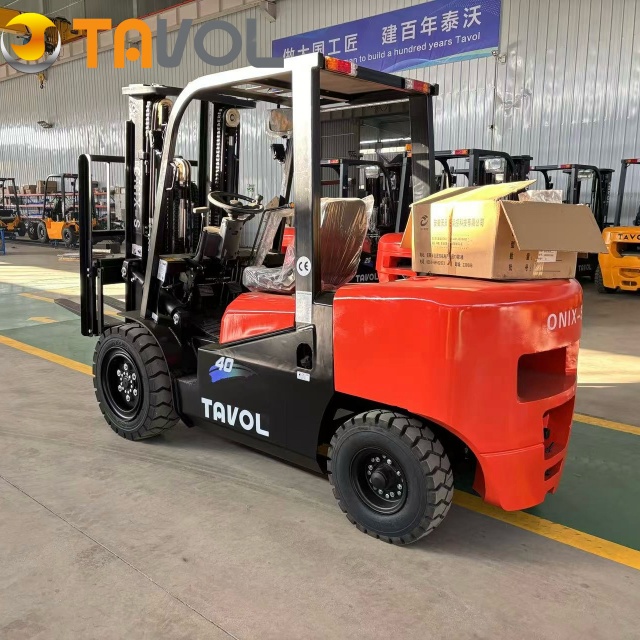

CPCD40
Tavol
TAVOL brand forklift applied CE certificate, the performance & technical specification is advanced in China, has reached the international advanced level .We have exported to many countries, such as Germany, Brazil, Mexico, Spain, Moldova, Albania, Paraguay, El Salvador, Argentina, Bosnia, Kuwait, Turkey, Cyprus, Saudi Arabia, Indonesia,Georgia, Bangladesh, Philippines, Australia etc.
Attachment for Fork Lift
Optional side shifter, fork positioner, paper roll clamp, bale clamp ,rotating clamp etc.
Product specifications
| Model | CPCD40 |
| Rated Loading Capacity(kg) | 4000 |
| Load Center Distance(mm) | 500 |
| Fork Lifting Height(mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Length (Including Fork)(mm) | 4100 |
| Width(mm) | 1230 |
| Height(Door Frame Indented) | 2120 |
| Wheel Base(mm) | 1900 |
| Self Weight(kg) (kg) | 4810/4850 |
| Fork Width(mm) | 122 |
| Fork Thickness(mm) | 50 |
| Standard Fork Length(mm) | 1220 |
| Transmission form | Hydraulic |
OPTIONAL
1.Xinchai engine,optional Japan lsuzu, Mitsubishi engine and others.
2.Mechanical and Automatic transmission can be choosen.
3.Standard 2-stages 3000mm mast, optional 3-stages 4500mm -7500mm mast;
4.Standard 1220mmfork, optional 1370mm,1520mm, 1670mm and1820mm forks;
5.Optional side shifter, fork positioner and other attachments;6.Standard pneumatic tire, optional solid tire.
