CPCD
Tavol

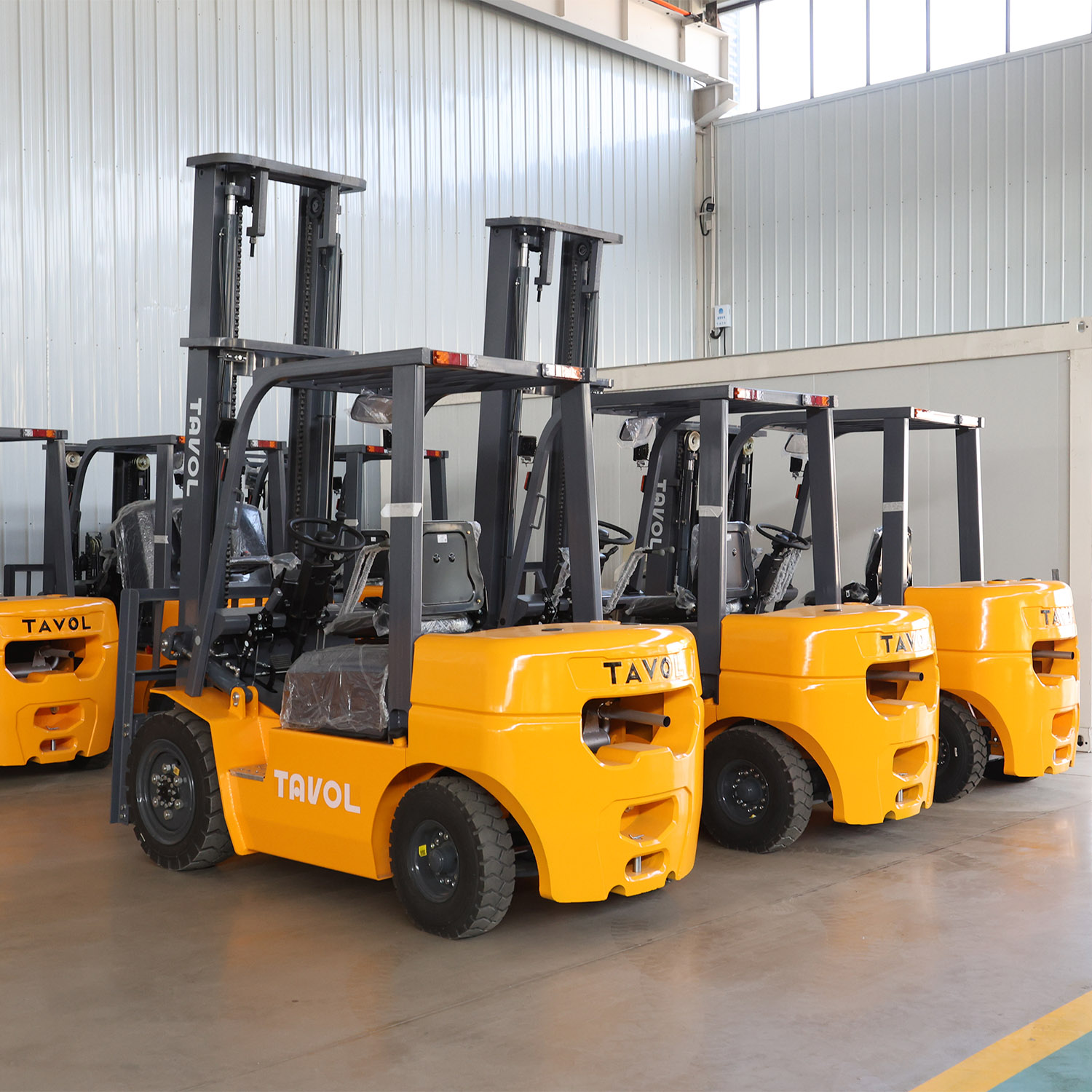

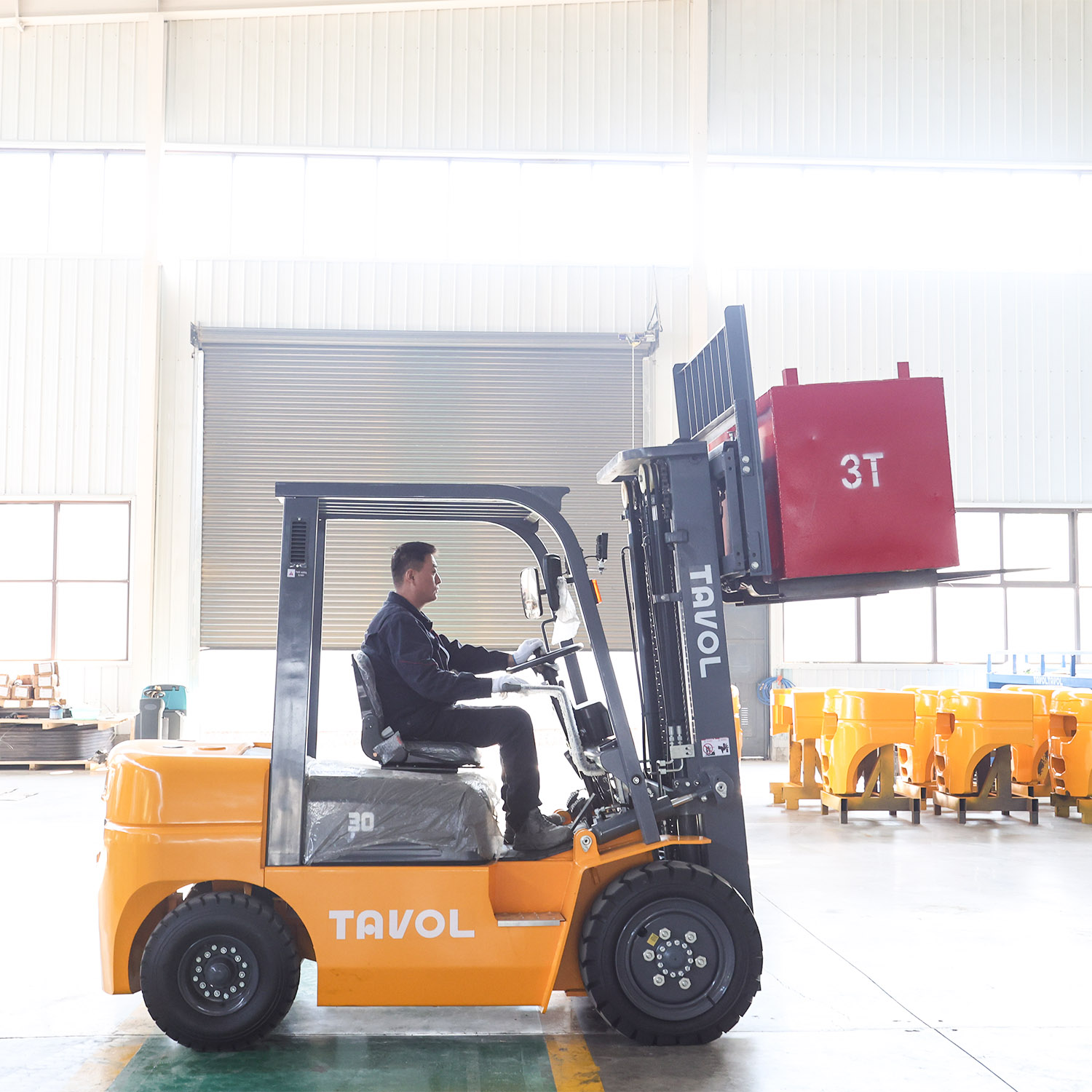

Tavol Diesel Forklift Comes with 3T Load Capacity
Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption. Our forklift can reduce your cost,provide greater productivity and profitability for you.
Technical Parameters
| Model | CPC30/ CPCD30 |
| Rated Loading Capacity (kg) | 3200 |
| Load Center Distance (mm) | 500 |
| Max Lifting Speed (Full load) (mm/h) | 475 |
| Max Driving Speed (Empty/Full load) (km/h) | 18/20 |
| Fork Lifting Height (mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Min. Turning Radius (mm) | 2530 |
| Min. Ground Clearance (mm) | 135 |
| Length (Including Fork) (mm) | 3970 |
| Width (mm) | 1230 |
| Height From Ground to Overhead Guard (mm) | 2105 |
| Front Overhang (mm) | 465 |
| Wheel Base (mm) | 1775 |
| Front Wheel Track (mm) | 1000 |
| Rear Wheel Track (mm) | 970 |
| Front Wheel Tyre | 28*9-15 |
| Rear Wheel Tyre | 6.50-10 |
| Self Weight (kg) | 4250/4290 |
| Standard Fork Length (mm) | 1220 |
| Engine Rated Power (kw) | 36.8 |
| Engine Speed At Rated Power (rmp) | 2500 |
| Engine Maximum Torque (Nm) | 165 |
| Engine Speed At Maximum Torque (rpm) | 1600-1800 |
| Variable speed form | Mechanical/ Hydraulic |
Optional:
1.Engine: Standard China Xinchai engine,optional Japan Isuzu, Yanmar and Mitsubishi engine and others.
2.Transmission: Mechanical and Automatic transmission can be choosen.
3.Mast: Standard 2-stages 3000mm mast, optional 3-stages 4500mm -6000mm mast and others.
4.Fork: Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks.

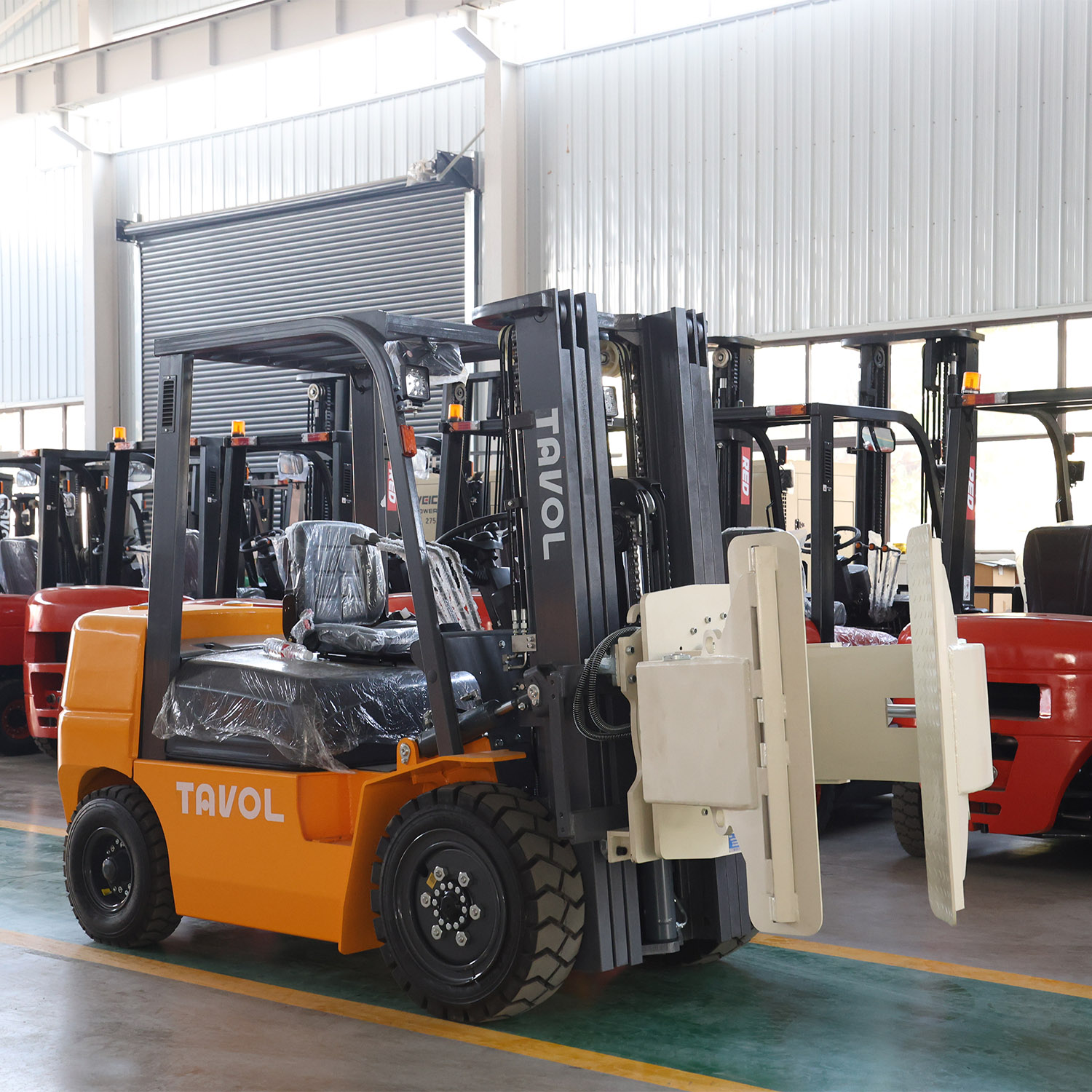

5.Attachment: Side shifter, fork positioner, 360 degree rotator,bale clamp, paper roll clamp and other attachments are supported.
6.Tires: Standard pneumatic tire, optional solid tire.
Side Shift |  Side Shift And Fork Adjustment |
Japanese Isuzu C240 Engine |
Chinese Xinchai Brand Engine |
YQX-Automatic Transmission |
Japanese Mitsubishi Engine |
2 Stages Full Free Mast |  3 Stages Full Free Mast |
Standard Xinchai Brand Diesel Engine In-line 4-cylinder water-cooled, 4-stroke, electronically controlled VP pump, rated power 36.8Kw, maximum torque 165Nm, emissions meet the requirements of China's fourth-stage emission standards; Strong power, high reliability, to meet the use of high-load conditions; The whole machine has high reliability and stable quality, ensuring a long service life. |
Famouse ZhongChai Brand Hydraulic Transmission The first domestic brand, is selected. The transmission of the hydraulic transmission gearbox is more stable, the shifting is lighter and more flexible, and the driving is light and comfortable,work intensity. |
