CPQYD2.5
Tavol

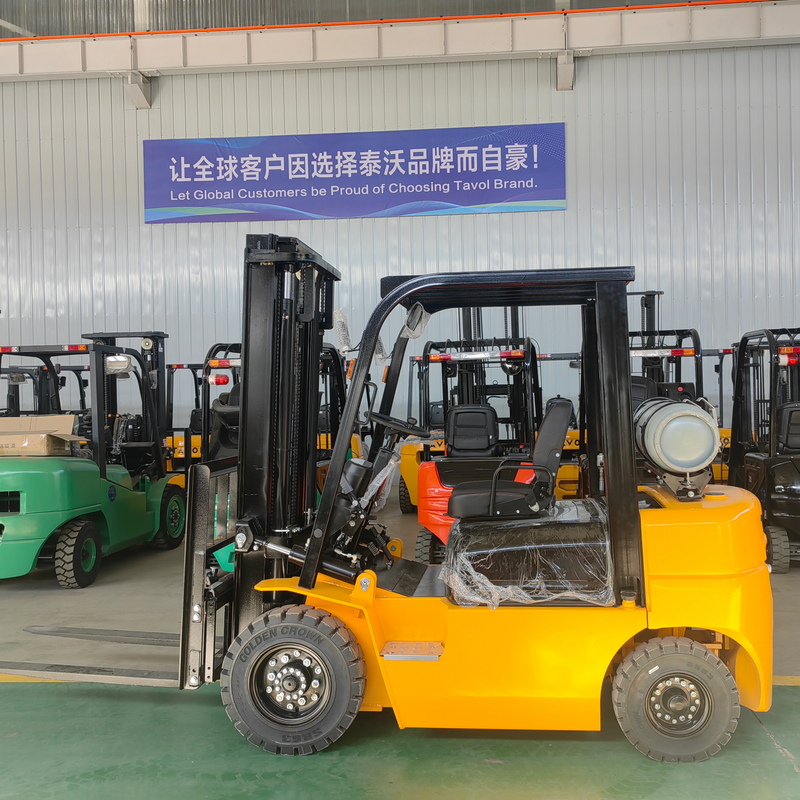

The 2.5 ton LPG forklift is a forklift that combines traditional fuels (such as diesel) and clean energy (such as LPG, LPG or natural gas, CNG) to provide efficient and environmentally friendly material handling solutions. With its compact design and strong load capacity, the forklift truck is suitable for a variety of industrial and commercial environments, such as warehouses, factories, docks, etc.
Product Advantages:
1. Environmental protection and energy saving, dual-fuel system to reduce emission costs;
2. Strong bearing capacity and flexible operation;
3. Cost-effective and adaptable to changing working conditions;
4. Humanized design to improve operation comfort and safety.
Technical parameters
| 2.5 ton LPG forklift specifications | |||||
| type | CPQYD25H | ||||
| Rated capacity | kg | 2500 | |||
| Load center | millimetre | 500 | |||
| Lifting height (max) | millimetre | 3000 | |||
| Lift the height freely | millimetre | 60 | |||
| Mast tilt angle | F/R | degree | 6°/12° | ||
| Lifting speed (max) | load | mm/s | 400 | ||
| Traction (max) | Loaded/uninstalled | KN (English) | 15/10 | ||
| Travel speed (max) | Loaded/uninstalled | km/h | 17/19 | ||
| Grading ability below full score | Loaded/uninstalled | % | 15/20 | ||
| Load (max) | |||||
| Turning radius (minimum) | millimetre | 2450 | |||
| Minimum clearance from the ground | millimetre | 110 | |||
| Ground to upper frame height | millimetre | 2050 | |||
| wheelbase | millimetre | 1640 | |||
| Car tread covers | F/R | millimetre | 970/970 | ||
| Front overhang | millimetre | 451 | |||
| size | length | With forks | millimetre | 3605 | |
| width | millimetre | 1160 | |||
| Enclosed mast height | millimetre | 2095 | |||
| Overhead guard height | millimetre | 2095 | |||
| Maximum working height | with/without backrest | millimetre | 4080 | ||
| Fork size | LXWXT | millimetre | 1220x122x40 | ||
| Standard fork length | millimetre | 1070 | |||
| dead weight | kg | 3600 | |||
| tired | 2 units | Pneumatic tires | |||
| 2 units | Pneumatic tires | ||||
| motor | brand | Guangqing/Nissan K25 engine | |||
Product Use:
1. Warehousing and logistics: In large warehouses, logistics centers and other places, 2.5-ton dual-fuel forklifts are used to transport and stack various goods to improve the efficiency of warehousing and logistics. These sites often handle large volumes of cargo and require high load-carrying capacity and flexibility of forklifts.
2. Manufacturing: On the manufacturing production line, forklifts are used to transport raw materials, semi-finished products and finished products. The 2.5-ton dual-fuel forklift can meet these needs, and its dual-fuel system helps reduce operating costs.
3. Agricultural mines: transportation of agricultural products or processing raw materials on farms; Transporting heavy loads, such as ores, in mines. The 2.5 ton dual fuel forklift truck is suitable for these environments because of its load capacity and durability.
Product Operation Guide
Stopping and shutting down the engine
1. Parking location: Choose a flat and stable ground as a parking location, and avoid parking on slopes or soft ground.
2. Put down the fork: After parking, the fork should be lowered to the lowest position to avoid damage to people or objects.
3. Tighten the handbrake: tighten the handbrake after parking to prevent the forklift.
4. Flame-off: Turn off the engine, cut off the power supply, and ensure that the forklift is in a safe state.
frequently asked questions
1. Who are we?
We are based in Shandong, China, start from 2012,sell to South America(30.00%),Southeast Asia(15.00%),Africa(10.00%),South Asia(9.00%),Domestic Market(5.00%),Eastern Asia(5.00%),Mid East(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(3.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%), Oceania (2.00%). In total, we have about 51-100 people in our office.
2.What can you buy from us?
Tractor, Wheel loaders, backhoe loaders, rough all-terrain forklifts, etc.
3. How can we guarantee the quality?
Before mass production, it is always a pre-production sample;
Always do a final inspection before shipment.
4. why should you buy from us not from other suppliers?
We have an excellent R&D team, all designers have a bachelor's degree or above in mechanical engineering, and have more than 10 years of work experience in the construction machinery industry.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDU, Express;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, Switzerland Franc;
Accepted Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Languages: English, Chinese.
The 2.5 ton LPG forklift is a forklift that combines traditional fuels (such as diesel) and clean energy (such as LPG, LPG or natural gas, CNG) to provide efficient and environmentally friendly material handling solutions. With its compact design and strong load capacity, the forklift truck is suitable for a variety of industrial and commercial environments, such as warehouses, factories, docks, etc.
